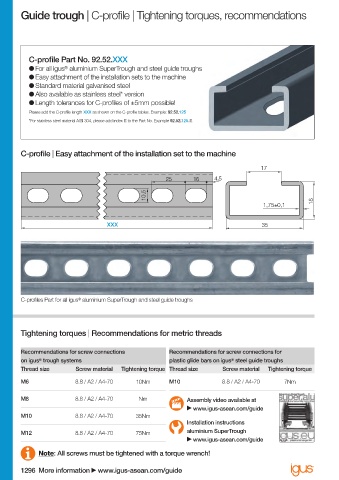

Guide trough | C-profi le | Tightening torques, recommendations

C-profi le Part No. 92.52.XXX
● For all igus aluminium SuperTrough and steel guide troughs
®
● Easy attachment of the installation sets to the machine
● Standard material galvanised steel
● Also available as stainless steel* version
● Length tolerances for C-profi les of ±5mm possible!
Please add the C-profi le length XXX as shown on the C-profi le tables. Example: 92.52.125
*For stainless steel material AISI 304, please add index E to the Part No. Example 92.52.125.E

C-profi le | Easy attachment of the installation set to the machine
17
25 16 4,5
10,5
1,75±0,1 18

XXX 35

C-profi les Part for all igus ® aluminium SuperTrough and steel guide troughs

Tightening torques | Recommendations for metric threads

Recommendations for screw connections Recommendations for screw connections for
on igus ® trough systems plastic glide bars on igus ® steel guide troughs
Thread size Screw material Tightening torque Thread size Screw material Tightening torque
M6 8.8 / A2 / A4-70 10Nm M10 8.8 / A2 / A4-70 7Nm

M8 8.8 / A2 / A4-70 Nm Assembly video available at
www.igus-asean.com/guide
M10 8.8 / A2 / A4-70 35Nm
Installation instructions
M12 8.8 / A2 / A4-70 75Nm aluminium SuperTrough
www.igus-asean.com/guide

Note: All screws must be tightened with a torque wrench!
