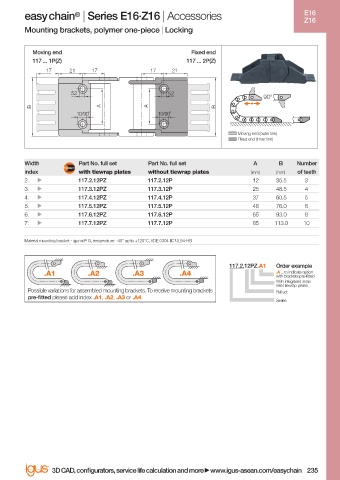

Page 237 - IGUS ECS CATALOG

easy chain | Series E16·Z16 | Accessories E16
®
Z16
Mounting brackets, polymer one-piece | Locking

Moving end Fixed end
117 ... 1P(Z) 117 ... 2P(Z)
17 21 17 17 21

5.2 5.2
90°
B A A B
10/90˚ 10/90˚

Moving end (outer link)
Fixed end (inner link)

Width Part No. full set Part No. full set A B Number
index with tiewrap plates without tiewrap plates [mm] [mm] of teeth
2. ▼ 117.2.12PZ 117.2.12P 12 35.5 3
3. ▼ 117.3.12PZ 117.3.12P 25 48.5 4
4. ▼ 117.4.12PZ 117.4.12P 37 60.5 5
5. ▼ 117.5.12PZ 117.5.12P 48 76.0 6
6. ▼ 117.6.12PZ 117.6.12P 65 93.0 8
7. ▼ 117.7.12PZ 117.7.12P 85 113.0 10
Material mounting bracket - igumid ® G, temperature: -40° up to +120°C, VDE 0304 IIC UL94-HB

117.2.12PZ.A1 Order example
.A1 .A2 .A3 .A4 with brackets pre-fi tted
to indicate option
With integrated strain
relief tiewrap plates
Possible variations for assembled mounting brackets. To receive mounting brackets Full set
pre-fi tted please add index .A1, .A2, .A3 or .A4.
Series

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/easychain 235
