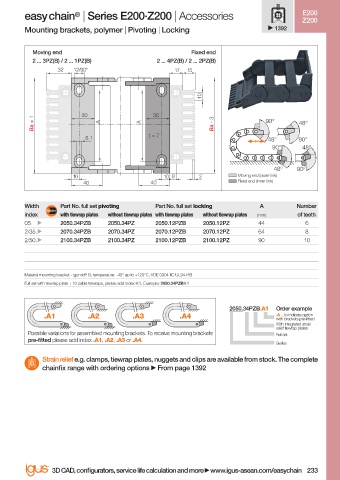

Page 235 - IGUS ECS CATALOG
P. 235

easy chain  | Series E200·Z200 | Accessories                          E200
                                     ®
                                                                                              Z200
                        Mounting brackets, polymer | Pivoting | Locking                1392

                          Moving end                              Fixed end
                          2 ... 3PZ(B) / 2 ... 1PZ(B)    2 ... 4PZ(B) / 2 ... 2PZ(B)
                                 32  12/90°                   17  15


                                                                    10

                                       30               30
                          Ba + 1           A         A                 Ba - 3       90°      48°
                                                       t = 7
                                       6.1                                           48°     90°
                                                                                      90°     48°

                                                                                       48°  90°
                                    10                     10  8    2         Moving end (outer link)
                                       40               40                    Fixed end (inner link)


                        Width    Part No. full set pivoting  Part No. full set locking  A   Number
                        index    with tiewrap plates  without tiewrap plates with tiewrap plates  without tiewrap plates  [mm]  of teeth
                        05.  ▼   2050.34PZB  2050.34PZ   2050.12PZB  2050.12PZ     44         6
                        2/35. ▼  2070.34PZB  2070.34PZ   2070.12PZB  2070.12PZ     64         8
                        2/50. ▼  2100.34PZB  2100.34PZ   2100.12PZB  2100.12PZ     90         10




                        Material mounting bracket - igumid ®  G, temperature: -40° up to +120°C, VDE 0304 IIC UL94-HB
                        Full set with tiewrap plate + 10 cable tiewraps, please add index K1. Example: 2050.34PZBK1


                                                                           2050.34PZB.A1  Order example
                                                                                           to indicate option
                             .A1        .A2        .A3         .A4                     with brackets pre-fi tted
                                                                                       With integrated strain
                                                                                       relief tiewrap plates
                         Possible variations for assembled mounting brackets. To receive mounting brackets   Full set
                         pre-fi tted please add index .A1, .A2, .A3 or .A4.
                                                                                       Series
                             Strain relief e.g. clamps, tiewrap plates, nuggets and clips are available from stock. The complete
                             chainfi x range with ordering options   From page 1392














                               3D CAD, confi gurators, service life calculation and more   www.igus-asean.com/easychain  233
