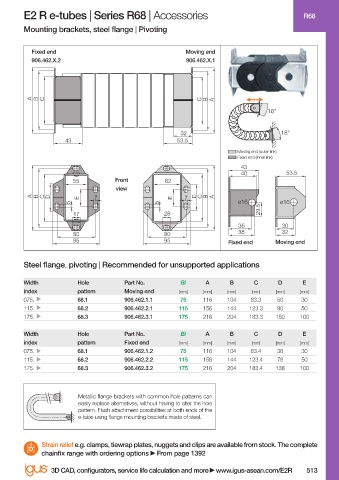

E2 R e-tubes | Series R68 | Accessories R68
Mounting brackets, steel flange | Pivoting

Fixed end Moving end
906.462.X.2 906.462.X.1

A B C C B A
18°

32 18°
43 53.5
Moving end (outer link)
Fixed end (inner link)
43
40 53.5
55 Front 62
view
A B C D E 7 7 E 7 D C B A
5 5 ø16 ø16
29.5
17 28
36 30
80 80 38 32
95 95 Fixed end Moving end

Steel fl ange, pivoting | Recommended for unsupported applications

Width Hole Part No. Bi A B C D E
index pattern Moving end [mm] [mm] [mm] [mm] [mm] [mm]
075. ▼ 68.1 906.462.1.1 75 116 104 83.3 50 30
115. ▼ 68.2 906.462.2.1 115 156 144 123.3 90 50
175. ▼ 68.3 906.462.3.1 175 216 204 183.3 150 100

Width Hole Part No. Bi A B C D E
index pattern Fixed end [mm] [mm] [mm] [mm] [mm] [mm]
075. ▼ 68.1 906.462.1.2 75 116 104 83.4 38 30
115. ▼ 68.2 906.462.2.2 115 156 144 123.4 78 50
175. ▼ 68.3 906.462.3.2 175 216 204 183.4 138 100

Metallic fl ange brackets with common hole patterns can
easily replace alternatives, without having to alter the hole
pattern. Flush attachment possibilities at both ends of the
e-tube using fl ange mounting brackets made of steel.

Strain relief e.g. clamps, tiewrap plates, nuggets and clips are available from stock. The complete
chainfi x range with ordering options From page 1392
3D CAD, confi gurators, service life calculation and more www.igus-asean.com/E2R 513
