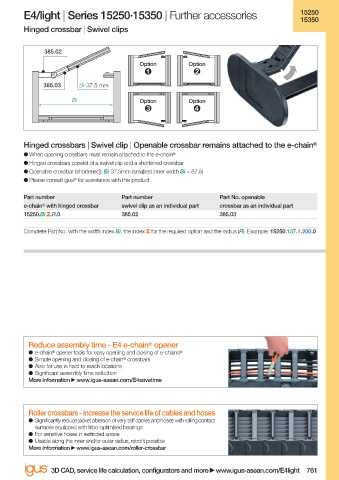

Page 763 - IGUS ECS CATALOG

E4/light | Series 15250·15350 | Further accessories 15250
15350
Hinged crossbar | Swivel clips

385.02
Option Option

385.03 Bi-37.5 mm
Bi Option Option

Hinged crossbars | Swivel clip | Openable crossbar remains attached to the e-chain ®
● When opening crossbars must remain attached to the e-chain ®
● Hinged crossbars consist of a swivel clip and a shortened crossbar
● Openable crossbar (shortened): Bi-37.5mm (smallest inner width Bi = 87.5)
● Please consult igus ® for assistance with this product

Part number Part number Part No. openable
e-chain ® with hinged crossbar swivel clip as an individual part crossbar as an individual part
15250.Bi.Z.R.0 385.02 385.03

Complete Part No. with the width index Bi, the index Z for the required option and the radius (R). Example: 15250.137.1.200.0

Reduce assembly time - E4 e-chain opener
®
● e-chain ® opener tools for easy opening and closing of e-chains ®
● Simple opening and closing of e-chain ® crossbars
● Also for use in hard to reach locations
● Signifi cant assembly time reduction
More information www.igus-asean.com/E4savetime

Roller crossbars - increase the service life of cables and hoses
● Signifi cantly reduce jacket abrasion of very stiff cables and hoses with rolling contact
surfaces equipped with tribo-optimised bearings
● For sensitive hoses in restricted space
● Usable along the inner and/or outer radius, retrofi t possible
More information www.igus-asean.com/roller-crossbar

3D CAD, service life calculation, confi gurators and more www.igus-asean.com/E4light 761
