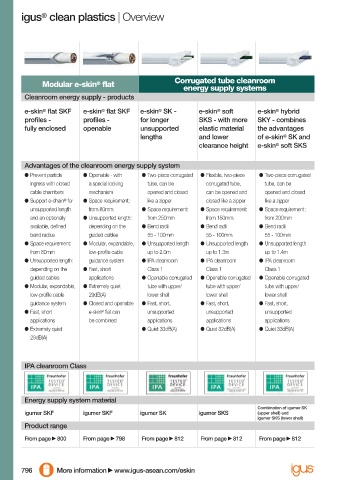

igus clean plastics | Overview
®

Corrugated tube cleanroom
Modular e-skin fl at
®
energy supply systems
Cleanroom energy supply - products
®
e-skin fl at SKF e-skin fl at SKF e-skin SK - e-skin soft e-skin hybrid
®
®
®
®
profi les - profi les - for longer SKS - with more SKY - combines
fully enclosed openable unsupported elastic material the advantages
lengths and lower of e-skin SK and
®
clearance height e-skin soft SKS
®
Advantages of the cleanroom energy supply system
● Prevent particle ● Openable - with ● Two-piece corrugated ● Flexible, two-piece ● Two-piece corrugated
ingress with closed a special locking tube, can be corrugated tube, tube, can be
cable chambers mechanism opened and closed can be opened and opened and closed
● Support e-chain ® for ● Space requirement: like a zipper closed like a zipper like a zipper
unsupported length from 80mm ● Space requirement: ● Space requirement: ● Space requirement:
and an optionally ● Unsupported length: from 250mm from 150mm from 200mm
available, defi ned depending on the ● Bend radii ● Bend radii ● Bend radii
bend radius guided cables 55 - 100mm 55 - 100mm 55 - 100mm
● Space requirement: ● Modular, expandable, ● Unsupported length ● Unsupported length ● Unsupported length
from 80mm low-profi le cable up to 2.0m up to 1.3m up to 1.4m
● Unsupported length: guidance system ● IPA cleanroom ● IPA cleanroom ● IPA cleanroom
depending on the ● Fast, short Class 1 Class 1 Class 1
guided cables applications ● Openable corrugated ● Openable corrugated ● Openable corrugated
● Modular, expandable, ● Extremely quiet tube with upper/ tube with upper/ tube with upper/
low-profi le cable 29dB(A) lower shell lower shell lower shell
guidance system ● Closed and openable ● Fast, short, ● Fast, short, ● Fast, short,
● Fast, short e-skin ® fl at can unsupported unsupported unsupported
applications be combined applications applications applications
● Extremely quiet ● Quiet 33dB(A) ● Quiet 32dB(A) ● Quiet 33dB(A)
29dB(A)

IPA cleanroom Class

Energy supply system material
Combination of igumer SK
igumer SKF igumer SKF igumer SK igumer SKS (upper shell) and
igumer SKS (lower shell)
Product range
From page 800 From page 798 From page 812 From page 812 From page 812

796 More information www.igus-asean.com/eskin
