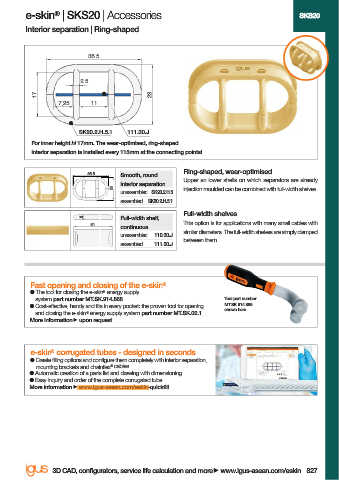

Page 829 - IGUS ECS CATALOG

e-skin | SKS20 | Accessories SKS20
®
Interior separation | Ring-shaped

36.5

2.5
17 23
7,25 11

SK20.2.H.5.1 111.30.J
For inner height hi 17mm. The wear-optimised, ring-shaped
interior separation is installed every 115mm at the connecting points!

Ring-shaped, wear-optimised
36.5
Smooth, round
Upper an lower shells on which separators are already
interior separation
23 injection moulded can be combined with full-width shelves.
unassembled SK20.2.H.5
assembled SK20.2.H.5.1
Full-width shelves
2 2 Full-width shelf,
This option is for applications with many small cables with
30 continuous
similar diameters. The full-width shelves are simply clamped
unassembled 110.30.J
between them.
assembled 111.30.J
Fast opening and closing of the e-skin ®
● The tool for closing the e-skin ® energy supply
system part number MT.SK.914.868 Tool part number
● Cost-eff ective, handy and fi ts in every pocket: the proven tool for opening MT.SK.914.868
shown here
and closing the e-skin ® energy supply system part number MT.SK.02.1
More information upon request

®
e-skin corrugated tubes - designed in seconds
● Create fi lling options and confi gure them completely with interior separation,
mounting brackets and chainfl ex ® cables
● Automatic creation of a parts list and drawing with dimensioning
● Easy inquiry and order of the complete corrugated tube
More information www.igus-asean.com/eskin-quickfi ll

3D CAD, confi gurators, service life calculation and more www.igus-asean.com/eskin 827
