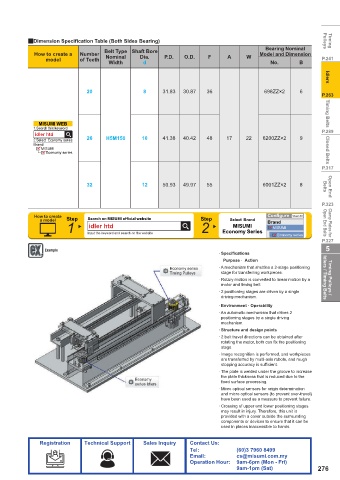

2Dimension Specifi cation Table (Both Sides Bearing) Pulleys Timing
Bearing Nominal
Belt Type Shaft Bore
How to create a Number Nominal Dia. P.D. O.D. F A W Model and Dimension
model of Teeth P.241
Width d No. B

20 8 31.83 30.87 36 698ZZ×2 6 Idlers
P.263

MISUMI WEB Timing Belts
1.Search this keyword P.289
idler htd
2.Select Economy series 26 H5M150 10 41.38 40.42 48 17 22 6200ZZ×2 9
Brand
MISUMI Closed Belts
Economy series
P.317

32 12 50.93 49.97 55 6001ZZ×2 8 Belts Open End

P.323

How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand Open End Belts
1 idler htd 2 MISUMI MISUMI Clamp Plates for
Economy Series
Input the keyword and search on the website
Economy series
P.327
Example 5
· Specifi cations
Purpose · Action
Economy series · A mechanism that shuttles a 2-stage positioning
Timing Pulleys stage for transferring workpieces.
· Rotary motion is converted to linear motion by a Idlers / Timing Belts Timing Pulleys /
motor and timing belt.
· 2 positioning stages are driven by a single
driving mechanism.
· Environment · Operability
· An automatic mechanism that drives 2
positioning stages by a single driving
mechanism.
· Structure and design points
· 2 belt travel directions can be obtained after
rotating the motor, both can fi x the positioning
stage.
· Image recognition is performed, and workpieces
are transferred by multi-axis robots, and rough
stopping accuracy is suffi cient.
· The plate is welded under the groove to increase
the plate thickness that is reduced due to the
Economy
series Idlers fi xed surface processing.
· Micro optical sensors for origin determination
and micro optical sensors (to prevent over-travel)
have been used as a measure to prevent failure.
· Crossing of upper and lower positioning stages
may result in injury. Therefore, this unit is
provided with a cover outside the surrounding
components or devices to ensure that it can be
used in places inaccessible to hands.
