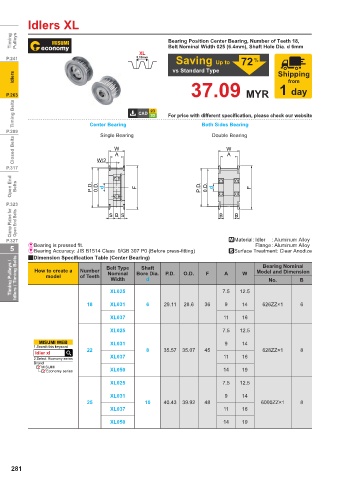

Page 284 - MiSUMi FA Mechanical Components Economy Series

Idlers XL

Timing Pulleys Bearing Position Center Bearing, Number of Teeth 18,
Belt Nominal Width 025 (6.4mm), Shaft Hole Dia. d 6mm
XL
P.241 5.08mm %
Saving Up to 72
vs Standard Type Shipping
Idlers from

37.09 MYR 1 day
P.263
Timing Belts For price with different specification, please check our website

P.289 Center Bearing Both Sides Bearing
Single Bearing Double Bearing
Closed Belts W W
A
A
P.317 W/2
Open End Belts P.D. 0.D. d F P.D. 0.D. d F

P.323
Clamp Plates for Open End Belts S B S B B

P.327 .Material: Idler : Aluminum Alloy
Flange: Aluminum Alloy
5 &Bearing is pressed fit. 4Surface Treatment: Clear Anodize
&Bearing Accuracy: JIS B1514 Class 0/GB 307 P0 (Before press-fitting)
2Dimension Specifi cation Table (Center Bearing)
Timing Pulleys / Idlers / Timing Belts How to create a Number Belt Type Bore Dia. P.D. O.D. F A W Model and Dimension
Bearing Nominal
Shaft
Nominal
of Teeth
model
Width
d
No.
B
18 XL025 6 29.11 28.6 36 7.5 12.5 626ZZ×1 6
9
XL031
14
XL037 11 16
XL025 7.5 12.5
MISUMI WEB XL031 9 14
1.Search this keyword
idler xl 22 8 35.57 35.07 45 628ZZ×1 8
2.Select Economy series XL037 11 16
Brand
MISUMI
Economy series XL050 14 19
XL025 7.5 12.5
XL031 9 14
25 10 40.43 39.92 48 6000ZZ×1 8
XL037 11 16
XL050 14 19
