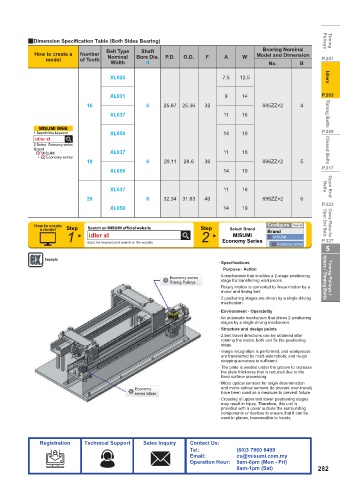

Page 285 - MiSUMi FA Mechanical Components Economy Series

2Dimension Specifi cation Table (Both Sides Bearing) Pulleys Timing
Belt Type Shaft Bearing Nominal
How to create a Number Nominal Bore Dia. P.D. O.D. F A W Model and Dimension
model of Teeth P.241
Width d No. B
XL025 7.5 12.5 Idlers

XL031 9 14 P.263
16 5 25.87 25.36 32 695ZZ×2 4
XL037 11 16 Timing Belts

MISUMI WEB
1.Search this keyword XL050 14 19 P.289
idler xl
2.Select Economy series
Brand Closed Belts
MISUMI XL037 11 16
Economy series
18 6 29.11 28.6 36 696ZZ×2 5
P.317
XL050 14 19
XL037 11 16 Belts Open End
20 8 32.34 31.83 40 698ZZ×2 6
P.323
XL050 14 19

How to create Search on MISUMI official website Configure Clear All Open End Belts Clamp Plates for
a model Step Step Select Brand Brand
1 idler xl 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series P.327
5
Example
· Specifi cations
Purpose · Action
Economy series · A mechanism that shuttles a 2-stage positioning Idlers / Timing Belts Timing Pulleys /
Timing Pulleys stage for transferring workpieces.
· Rotary motion is converted to linear motion by a
motor and timing belt.
· 2 positioning stages are driven by a single driving
mechanism.
· Environment · Operability
· An automatic mechanism that drives 2 positioning
stages by a single driving mechanism.
· Structure and design points
· 2 belt travel directions can be obtained after
rotating the motor, both can fi x the positioning
stage.
· Image recognition is performed, and workpieces
are transferred by multi-axis robots, and rough
stopping accuracy is suffi cient.
· The plate is welded under the groove to increase
the plate thickness that is reduced due to the
fi xed surface processing.
· Micro optical sensors for origin determination
Economy and micro optical sensors (to prevent over-travel)
series Idlers have been used as a measure to prevent failure.
· Crossing of upper and lower positioning stages
may result in injury. Therefore, this unit is
provided with a cover outside the surrounding
components or devices to ensure that it can be
used in places, inaccessible to hands.
