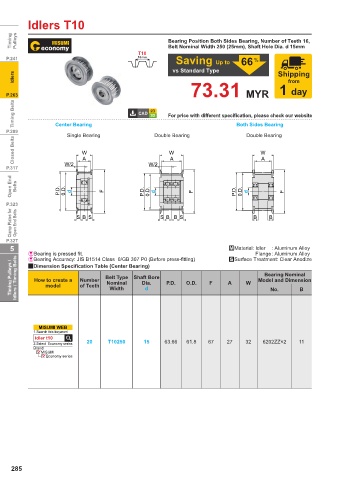

Page 288 - MiSUMi FA Mechanical Components Economy Series

Idlers T10

Timing Pulleys Bearing Position Both Sides Bearing, Number of Teeth 16,
Belt Nominal Width 250 (25mm), Shaft Hole Dia. d 15mm
T10
P.241 10mm %
Saving Up to 66
vs Standard Type Shipping
Idlers from

73.31 MYR 1 day
P.263
Timing Belts For price with different specification, please check our website

P.289 Center Bearing Both Sides Bearing
Single Bearing Double Bearing Double Bearing
Closed Belts W W W

A
A
A
P.317 W/2 W/2
Open End Belts P.D. 0.D. d F P.D. 0.D. d F P.D. 0.D. d F

P.323
Clamp Plates for Open End Belts S B S S BB S B B

P.327
5 .Material: Idler : Aluminum Alloy
&Bearing is pressed fit. 4Surface Treatment: Clear Anodize
Flange: Aluminum Alloy
&Bearing Accuracy: JIS B1514 Class 0/GB 307 P0 (Before press-fitting)
Timing Pulleys / Idlers / Timing Belts 2Dimension Specifi cation Table (Center Bearing) P.D. O.D. F A W Model and Dimension
Bearing Nominal
Belt Type
Shaft Bore
Number
How to create a
Dia.
Nominal
model
of Teeth
d
Width
B
No.
MISUMI WEB
1.Search this keyword
idler t10
2.Select Economy series 20 T10250 15 63.66 61.8 67 27 32 6202ZZ×2 11
