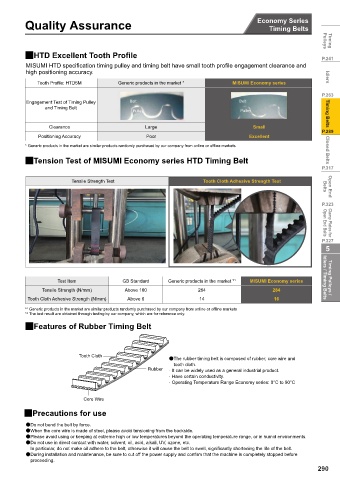

Quality Assurance Economy Series
Timing Belts

Pulleys
Timing
2HTD Excellent Tooth Profile P.241
MISUMI HTD specification timing pulley and timing belt have small tooth profile engagement clearance and
high positioning accuracy. Idlers
Tooth Profile: HTD5M Generic products in the market * MISUMI Economy series

P.263
Engagement Test of Timing Pulley Belt Belt
and Timing Belt
Pulley Pulley Timing Belts

Clearance Large Small
P.289
Positioning Accuracy Poor Excellent
* Generic products in the market are similar products randomly purchased by our company from online or offline markets Closed Belts

2Tension Test of MISUMI Economy series HTD Timing Belt
P.317

Tensile Strength Test Tooth Cloth Adhesive Strength Test Belts Open End

P.323

Open End Belts
P.327
Clamp Plates for
5

Test Item GB Standard Generic products in the market * 1 MISUMI Economy series Idlers / Timing Belts Timing Pulleys /
Tensile Strength (N/mm) Above 160 264 284
Tooth Cloth Adhesive Strength (N/mm) Above 6 14 16
* 1 Generic products in the market are similar products randomly purchased by our company from online or offline markets
* 2 The test result are obtained through testing by our company, which are for reference only.
2Features of Rubber Timing Belt

Tooth Cloth
*The rubber timing belt is composed of rubber, core wire and
tooth cloth.
Rubber · It can be widely used as a general industrial product.
· Have certain conductivity.
· Operating Temperature Range Economy series: 0°C to 90°C

Core Wire

2Precautions for use
*Do not bend the belt by force.
*When the core wire is made of steel, please avoid tensioning from the backside.
*Please avoid using or keeping at extreme high or low temperatures beyond the operating temperature range, or in humid environments.
*Do not use in direct contact with water, solvent, oil, acid, alkali, UV, ozone, etc.
*In particular, do not make oil adhere to the belt, otherwise it will cause the belt to swell, significantly shortening the life of the belt.
*During installation and maintenance, be sure to cut off the power supply and confirm that the machine is completely stopped before
proceeding.
