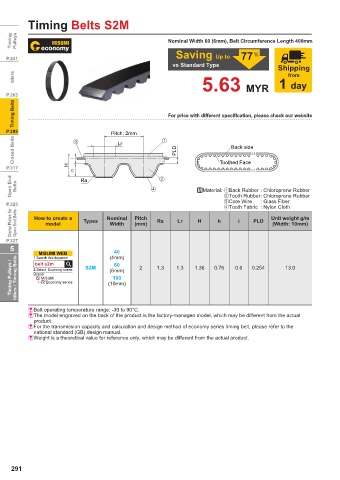

Page 294 - MiSUMi FA Mechanical Components Economy Series

Timing Belts S2M

Timing Pulleys Nominal Width 60 (6mm), Belt Circumference Length 400mm

P.241 Saving Up to 77 %
vs Standard Type Shipping
Idlers from

5.63 MYR 1 day
P.263
Timing Belts For price with different specification, please check our website

P.289 Pitch: 2mm
Closed Belts Lr PLD Back side

i
P.317 H Toothed Face
h
Open End Belts Ra .Material: Back Rubber : Chloroprene Rubber

Tooth Rubber: Chloroprene Rubber
Core Wire : Glass Fiber
P.323 Tooth Fabric : Nylon Cloth
Clamp Plates for Open End Belts How to create a Types Nominal Pitch Ra Lr H h i PLD Unit weight g/m
(Width: 10mm)
Width
model
(mm)
P.327
5
40
MISUMI WEB (4mm)
1.Search this keyword
Timing Pulleys / Idlers / Timing Belts 2.Select Economy series S2M (10mm) 2 1.3 1.3 1.36 0.76 0.6 0.254 13.0
belt s2m
60
(6mm)
Brand
100
MISUMI
Economy series
&Belt operating temperature range: -30 to 90°C.
&The model engraved on the back of the product is the factory-managed model, which may be different from the actual
product.
&For the transmission capacity and calculation and design method of economy series timing belt, please refer to the
national standard (GB) design manual.
&Weight is a theoretical value for reference only, which may be different from the actual product.
