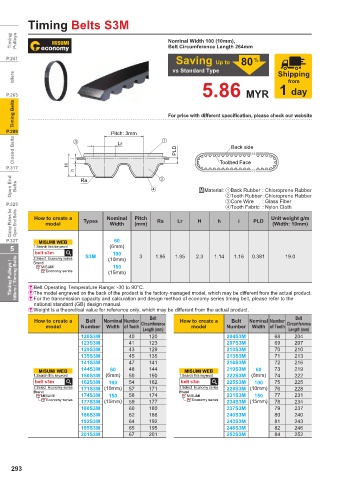

Page 296 - MiSUMi FA Mechanical Components Economy Series

Timing Belts S3M

Timing Pulleys Nominal Width 100 (10mm),
Belt Circumference Length 264mm

P.241 %
Saving Up to 80
vs Standard Type Shipping
Idlers from

5.86 MYR 1 day
P.263
Timing Belts For price with different specification, please check our website

P.289 Pitch: 3mm
Closed Belts Lr PLD Back side

i
P.317 H Toothed Face
h
Open End Belts Ra .Material: Back Rubber : Chloroprene Rubber

Tooth Rubber: Chloroprene Rubber
Core Wire : Glass Fiber
P.323 Tooth Fabric : Nylon Cloth
Clamp Plates for Open End Belts How to create a Types Nominal Pitch Ra Lr H h i PLD Unit weight g/m
model
(Width: 10mm)
(mm)
Width
P.327 MISUMI WEB 60
5 1.Search this keyword (6mm)
belt s3m S3M (10mm) 3 1.95 1.95 2.3 1.14 1.16 0.381 19.0
100
2.Select Economy series
Timing Pulleys / Idlers / Timing Belts &Belt Operating Temperature Range: -30 to 90°C.
Brand
150
MISUMI
Economy series
(15mm)
&The model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
&For the transmission capacity and calculation and design method of economy series timing belt, please refer to the
national standard (GB) design manual.
&Weight is a theoretical value for reference only, which may be different from the actual product.
Belt Belt
How to create a Belt Nominal Number Circumference How to create a Belt Nominal Number Circumference
model Number Width of Teeth model Number Width of Teeth
Length (mm) Length (mm)
120S3M 40 120 204S3M 68 204
123S3M 41 123 207S3M 69 207
129S3M 43 129 210S3M 70 210
135S3M 45 135 213S3M 71 213
141S3M 47 141 216S3M 72 216
144S3M 60 48 144 219S3M 60 73 219
MISUMI WEB MISUMI WEB
1.Search this keyword 150S3M (6mm) 50 150 1.Search this keyword 222S3M (6mm) 74 222
belt s3m 162S3M 100 54 162 belt s3m 225S3M 100 75 225
2.Select Economy series 171S3M (10mm) 57 171 2.Select Economy series 228S3M (10mm) 76 228
Brand Brand
MISUMI 174S3M 150 58 174 MISUMI 231S3M 150 77 231
Economy series Economy series
177S3M (15mm) 59 177 234S3M (15mm) 78 234
180S3M 60 180 237S3M 79 237
186S3M 62 186 240S3M 80 240
192S3M 64 192 243S3M 81 243
195S3M 65 195 246S3M 82 246
201S3M 67 201 252S3M 84 252
