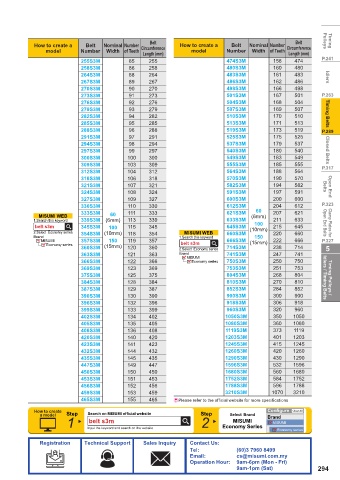

Page 297 - MiSUMi FA Mechanical Components Economy Series

Belt Belt Pulleys Timing
How to create a Belt Nominal Number Circumference How to create a Belt Nominal Number Circumference
model Number Width of Teeth model Number Width of Teeth
Length (mm) Length (mm)
255S3M 85 255 474S3M 158 474 P.241
258S3M 86 258 480S3M 160 480
264S3M 88 264 483S3M 161 483 Idlers
267S3M 89 267 486S3M 162 486
270S3M 90 270 498S3M 166 498
273S3M 91 273 501S3M 167 501 P.263
276S3M 92 276 504S3M 168 504
279S3M 93 279 507S3M 169 507
282S3M 94 282 510S3M 170 510 Timing Belts
285S3M 95 285 513S3M 171 513
288S3M 96 288 519S3M 173 519 P.289
291S3M 97 291 525S3M 175 525
294S3M 98 294 537S3M 179 537
297S3M 99 297 540S3M 180 540 Closed Belts
300S3M 100 300 549S3M 183 549
309S3M 103 309 555S3M 185 555 P.317
312S3M 104 312 564S3M 188 564
318S3M 106 318 570S3M 190 570
321S3M 107 321 582S3M 194 582 Belts Open End
324S3M 108 324 591S3M 197 591
327S3M 109 327 600S3M 200 600
330S3M 110 330 612S3M 204 612 P.323
333S3M 60 111 333 621S3M 60 207 621
MISUMI WEB (6mm)
1.Search this keyword 339S3M (6mm) 113 339 633S3M 211 633 Open End Belts
belt s3m 345S3M 100 115 345 645S3M 100 215 645 Clamp Plates for
2.Select Economy series 354S3M (10mm) 118 354 MISUMI WEB 660S3M (10mm) 220 660
Brand 1.Search this keyword 150
MISUMI 357S3M 150 119 357 666S3M (15mm) 222 666 P.327
Economy series belt s3m
360S3M (15mm) 120 360 2.Select Economy series 714S3M 238 714 5
363S3M 121 363 Brand 741S3M 247 741
MISUMI
366S3M 122 366 Economy series 750S3M 250 750
369S3M 123 369 753S3M 251 753
375S3M 125 375 804S3M 268 804 Idlers / Timing Belts Timing Pulleys /
384S3M 128 384 810S3M 270 810
387S3M 129 387 852S3M 284 852
390S3M 130 390 900S3M 300 900
396S3M 132 396 918S3M 306 918
399S3M 133 399 960S3M 320 960
402S3M 134 402 1050S3M 350 1050
405S3M 135 405 1080S3M 360 1080
408S3M 136 408 1119S3M 373 1119
420S3M 140 420 1203S3M 401 1203
423S3M 141 423 1245S3M 415 1245
432S3M 144 432 1260S3M 420 1260
435S3M 145 435 1290S3M 430 1290
447S3M 149 447 1596S3M 532 1596
450S3M 150 450 1680S3M 560 1680
453S3M 151 453 1752S3M 584 1752
456S3M 152 456 1788S3M 596 1788
459S3M 153 459 3210S3M 1070 3210
465S3M 155 465 &Please refer to the official website for more specifications

How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 belt s3m 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
