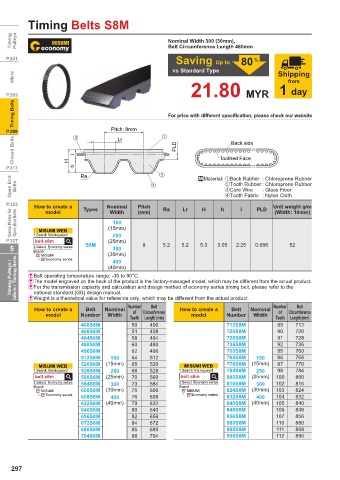

Page 300 - MiSUMi FA Mechanical Components Economy Series

Timing Belts S8M

Timing Pulleys Nominal Width 300 (30mm),
Belt Circumference Length 480mm

P.241 %
Saving Up to 80
vs Standard Type Shipping
Idlers from

21.80 MYR 1 day
P.263
Timing Belts For price with different specification, please check our website

P.289 Pitch: 8mm
Closed Belts i PLD Toothed Face
Lr
Back side

P.317 H h Ra
Open End Belts .Material: Back Rubber : Chloroprene Rubber
Tooth Rubber : Chloroprene Rubber
Core Wire
: Glass Fiber
P.323 How to create a Types Nominal Pitch Ra Lr H h Tooth Fabric : Nylon Cloth
Unit weight g/m
i
PLD
Clamp Plates for Open End Belts MISUMI WEB (15mm)
(Width: 10mm)
model
(mm)
Width
150
250
belt s8m
P.327 1.Search this keyword (25mm)
5 2.Select Economy series S8M 300 8 5.2 5.2 5.3 3.05 2.25 0.686 52
Brand
MISUMI (30mm)
Economy series
400
Timing Pulleys / Idlers / Timing Belts &Belt operating temperature range: -30 to 90°C.
(40mm)
&The model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
&For the transmission capacity and calculation and design method of economy series timing belt, please refer to the
national standard (GB) design manual.
&Weight is a theoretical value for reference only, which may be different from the actual product.
Number Belt Number Belt
How to create a Belt Nominal How to create a Belt Nominal
model Number Width of Circumference model Number Width of Circumference
Teeth Length (mm) Teeth Length (mm)
400S8M 50 400 712S8M 89 712
408S8M 51 408 720S8M 90 720
464S8M 58 464 728S8M 91 728
480S8M 60 480 736S8M 92 736
496S8M 62 496 760S8M 95 760
512S8M 150 64 512 768S8M 150 96 768
MISUMI WEB 520S8M (15mm) 65 520 MISUMI WEB 776S8M (15mm) 97 776
1.Search this keyword 528S8M 250 66 528 1.Search this keyword 784S8M 250 98 784
belt s8m 560S8M (25mm) 70 560 belt s8m 800S8M (25mm) 100 800
2.Select Economy series 584S8M 300 73 584 2.Select Economy series 816S8M 300 102 816
Brand Brand
MISUMI 600S8M (30mm) 75 600 MISUMI 824S8M (30mm) 103 824
Economy series Economy series
608S8M 400 76 608 832S8M 400 104 832
632S8M (40mm) 79 632 840S8M (40mm) 105 840
640S8M 80 640 848S8M 106 848
656S8M 82 656 856S8M 107 856
672S8M 84 672 880S8M 110 880
680S8M 85 680 888S8M 111 888
704S8M 88 704 896S8M 112 896

297
