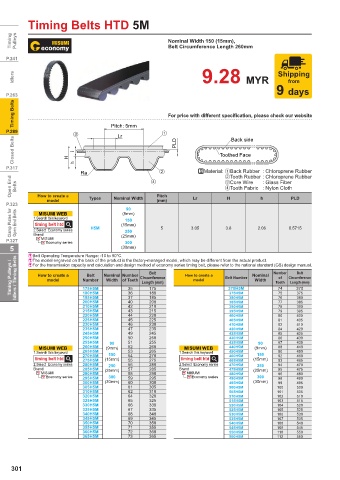

Page 304 - MiSUMi FA Mechanical Components Economy Series

Timing Belts HTD 5M

Timing Pulleys Nominal Width 150 (15mm),
Belt Circumference Length 260mm

P.241
Idlers 9.28 MYR Shipping
from
9 days
P.263
Timing Belts For price with different specification, please check our website

P.289 Pitch: 5mm
Lr Back side
Closed Belts H i PLD Toothed Face

P.317 h
Ra .Material: Back Rubber : Chloroprene Rubber
Tooth Rubber : Chloroprene Rubber
Open End Belts Core Wire : Glass Fiber
Tooth Fabric : Nylon Cloth
How to create a
model Types Nominal Width Pitch Lr H h PLD
(mm)
P.323 MISUMI WEB (9mm)
90
Clamp Plates for Open End Belts 1.Search this keyword H5M (15mm) 5 3.05 3.8 2.06 0.5715
150
timing belt htd
2.Select Economy series
250
P.327 Brand MISUMI (25mm)
300
Economy series
5 & Belt Operating Temperature Range: -10 to 90°C. (30mm)
& The model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
Timing Pulleys / Idlers / Timing Belts &For the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
Belt
Belt
Number
How to create a
Nominal
How to create a
Belt
Nominal Number
Circumference
Belt Number
of
Circumference
Width
model
of Teeth
Width
model
Number
Length (mm)
Length (mm)
Teeth
370H5M
370
74
175H5M
35
175
180H5M
37
185H5M
185
380
76
380H5M
40
200
200H5M 36 180 375H5M 75 375
385H5M
77
385
210H5M 42 210 390H5M 78 390
215H5M 43 215 395H5M 79 395
220H5M 44 220 400H5M 80 400
225H5M 45 225 405H5M 81 405
230H5M 46 230 410H5M 82 410
235H5M 47 235 420H5M 84 420
245H5M 49 245 425H5M 85 425
250H5M 50 250 430H5M 86 430
255H5M 90 51 255 435H5M 90 87 435
MISUMI WEB 260H5M (9mm) 52 260 MISUMI WEB 440H5M (9mm) 88 440
1.Search this keyword 265H5M 53 265 1.Search this keyword 450H5M 90 450
270H5M 150 54 270 460H5M 150 92 460
timing belt htd 275H5M (15mm) 55 275 timing belt htd 465H5M (15mm) 93 465
2.Select Economy series 280H5M 250 56 280 2.Select Economy series 470H5M 250 94 470
Brand 285H5M (25mm) 57 285 Brand 475H5M (25mm) 95 475
MISUMI 290H5M 58 290 MISUMI 480H5M 96 480
Economy series 295H5M 300 59 295 Economy series 490H5M 300 98 490
300H5M (30mm) 60 300 495H5M (30mm) 99 495
305H5M 61 305 500H5M 100 500
310H5M 62 310 505H5M 101 505
320H5M 64 320 510H5M 102 510
325H5M 65 325 515H5M 103 515
330H5M 66 330 520H5M 104 520
335H5M 67 335 525H5M 105 525
340H5M 68 340 530H5M 106 530
345H5M 69 345 535H5M 107 535
350H5M 70 350 540H5M 108 540
355H5M 71 355 545H5M 109 545
360H5M 72 360 550H5M 110 550
365H5M 73 365 560H5M 112 560
