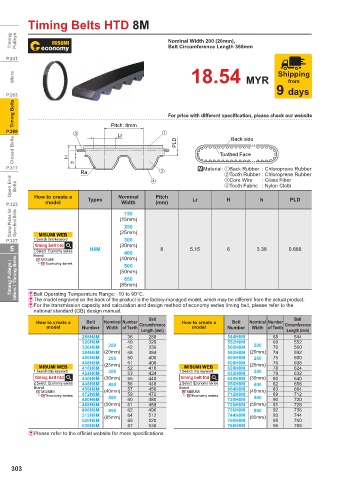

Page 306 - MiSUMi FA Mechanical Components Economy Series

Timing Belts HTD 8M

Timing Pulleys Nominal Width 200 (20mm),
Belt Circumference Length 368mm

P.241
Idlers 18.54 MYR Shipping
from
9 days
P.263
Timing Belts For price with different specification, please check our website

P.289 Pitch: 8mm
Lr Back side
Closed Belts H i PLD Toothed Face

P.317 h .Material: Back Rubber : Chloroprene Rubber
Ra Tooth Rubber : Chloroprene Rubber
Open End Belts Core Wire : Glass Fiber
Tooth Fabric : Nylon Cloth

model
(mm)
Width
P.323 How to create a Types Nominal Pitch Lr H h PLD
Clamp Plates for Open End Belts (15mm)
150
250
MISUMI WEB
300
P.327 1.Search this keyword (25mm)
timing belt htd
5 2.Select Economy series H8M (30mm) 8 5.15 6 3.38 0.686
400
Brand MISUMI (40mm)
Timing Pulleys / Idlers / Timing Belts (50mm)
Economy series
500
850
(85mm)
& Belt Operating Temperature Range: -10 to 90°C.
&The model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
&For the transmission capacity and calculation and design method of economy series timing belt, please refer to the
national standard (GB) design manual.
Belt Belt
How to create a Belt Nominal Number How to create a Belt Nominal Number
model Number Width of Teeth Circumference model Number Width of Teeth Circumference
Length (mm) Length (mm)
288H8M 36 288 544H8M 68 544
320H8M 40 320 552H8M 69 552
336H8M 200 42 336 560H8M 200 70 560
384H8M (20mm) 48 384 592H8M (20mm) 74 592
400H8M 250 50 400 600H8M 250 75 600
408H8M 51 408 608H8M 76 608
MISUMI WEB 416H8M (25mm) 52 416 MISUMI WEB 624H8M (25mm) 78 624
1.Search this keyword 424H8M 300 53 424 1.Search this keyword 632H8M 300 79 632
timing belt htd 440H8M (30mm) 55 440 timing belt htd 640H8M (30mm) 80 640
2.Select Economy series 448H8M 400 56 448 2.Select Economy series 656H8M 400 82 656
Brand 456H8M 57 456 Brand 664H8M 83 664
MISUMI (40mm) MISUMI (40mm)
Economy series 472H8M 500 59 472 Economy series 712H8M 500 89 712
480H8M 60 480 720H8M 90 720
488H8M (50mm) 61 488 728H8M (50mm) 91 728
496H8M 850 62 496 736H8M 850 92 736
512H8M (85mm) 64 512 744H8M (85mm) 93 744
520H8M 65 520 760H8M 95 760
536H8M 67 536 768H8M 96 768
&Please refer to the official website for more specifications

303
