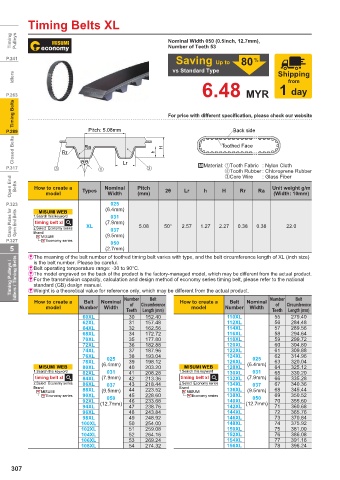

Page 310 - MiSUMi FA Mechanical Components Economy Series

Timing Belts XL

Timing Pulleys Nominal Width 050 (0.5inch, 12.7mm),
Number of Teeth 53

P.241 %
Saving Up to 80
vs Standard Type Shipping
Idlers from

6.48 MYR 1 day
P.263
Timing Belts For price with different specification, please check our website

P.289 Pitch: 5.08mm Back side
Closed Belts Rr Ra h H Toothed Face

P.317 șș Lr .Material: Tooth Fabric : Nylon Cloth
Tooth Rubber : Chloroprene Rubber
Core Wire
: Glass Fiber
Open End Belts How to create a Types Nominal Pitch 2θ Lr h H Rr Ra Unit weight g/m
model
Width
(Width: 10mm)
(mm)
025
P.323 MISUMI WEB (6.4mm)
Clamp Plates for Open End Belts 1.Search this keyword XL (7.9mm) 5.08 50° 2.57 1.27 2.27 0.38 0.38 22.0
031
timing belt xl
2.Select Economy series
037
Economy series
P.327 Brand MISUMI (9.5mm)
050
5 & The meaning of the belt number of toothed timing belt varies with type, and the belt circumference length of XL (inch size)
(2.7mm)
Timing Pulleys / Idlers / Timing Belts &Belt operating temperature range: -30 to 90°C.
is the belt number. Please be careful.
&The model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
& For the transmission capacity, calculation and design method of economy series timing belt, please refer to the national
standard (GB) design manual.
&Weight is a theoretical value for reference only, which may be different from the actual product.
Belt
Belt
How to create a Belt Nominal Number Circumference How to create a Belt Nominal Number Circumference
of
of
model Number Width model Number Width
Teeth Length (mm) Teeth Length (mm)
60XL 30 152.40 110XL 55 279.40
62XL 31 157.48 112XL 56 284.48
64XL 32 162.56 114XL 57 289.56
68XL 34 172.72 116XL 58 294.64
70XL 35 177.80 118XL 59 299.72
72XL 36 182.88 120XL 60 304.80
74XL 37 187.96 122XL 61 309.88
76XL 38 193.04 124XL 025 62 314.96
78XL 025 39 198.12 126XL 63 320.04
MISUMI WEB 80XL (6.4mm) 40 203.20 MISUMI WEB 128XL (6.4mm) 64 325.12
1.Search this keyword 82XL 031 41 208.28 1.Search this keyword 130XL 031 65 330.20
timing belt xl 84XL (7.9mm) 42 213.36 timing belt xl 132XL (7.9mm) 66 335.28
2.Select Economy series 86XL 037 43 218.44 2.Select Economy series 134XL 037 67 340.36
Brand Brand 136XL 68 345.44
MISUMI 88XL (9.5mm) 44 223.52 MISUMI (9.5mm)
Economy series 90XL 050 45 228.60 Economy series 138XL 050 69 350.52
92XL (12.7mm) 46 233.68 140XL (12.7mm) 70 355.60
94XL 47 238.76 142XL 71 360.68
96XL 48 243.84 144XL 72 365.76
98XL 49 248.92 146XL 73 370.84
100XL 50 254.00 148XL 74 375.92
102XL 51 259.08 150XL 75 381.00
104XL 52 264.16 152XL 76 386.08
106XL 53 269.24 154XL 77 391.16
108XL 54 274.32 156XL 78 396.24
307
