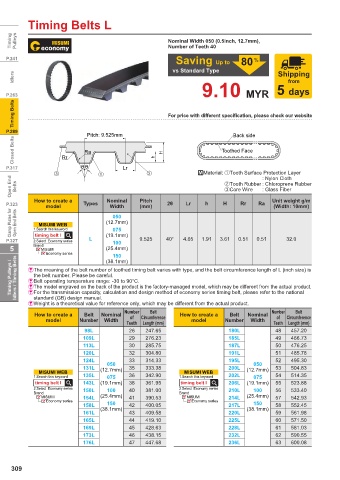

Page 312 - MiSUMi FA Mechanical Components Economy Series

Timing Belts L

Timing Pulleys Nominal Width 050 (0.5inch, 12.7mm),
Number of Teeth 40

P.241 %
Saving Up to 80
vs Standard Type Shipping
Idlers from

9.10 MYR 5 days
P.263
Timing Belts For price with different specification, please check our website

P.289
Pitch: 9.525mm Back side
Closed Belts Rr Ra h H Toothed Face

P.317 șș Lr
.Material: Tooth Surface Protection Layer
Open End Belts Tooth Rubber : Chloroprene Rubber
: Nylon Cloth
: Glass Fiber
Core Wire
How to create a Nominal Pitch Unit weight g/m
P.323 model Types Width (mm) 2θ Lr h H Rr Ra (Width: 10mm)
Clamp Plates for Open End Belts 1.Search this keyword (12.7mm)
050
MISUMI WEB
075
timing belt l
P.327 2.Select Economy series L (19.1mm) 9.525 40° 4.65 1.91 3.61 0.51 0.51 32.0
100
5 Brand MISUMI (25.4mm)
Economy series (38.1mm)
150
Timing Pulleys / Idlers / Timing Belts & The meaning of the belt number of toothed timing belt varies with type, and the belt circumference length of L (inch size) is
the belt number. Please be careful.
&Belt operating temperature range: -30 to 90°C.
&The model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
& For the transmission capacity, calculation and design method of economy series timing belt, please refer to the national
standard (GB) design manual.
&Weight is a theoretical value for reference only, which may be different from the actual product.
Number Belt Number Belt
How to create a Belt Nominal of Circumference How to create a Belt Nominal of Circumference
model Number Width model Number Width
Teeth Length (mm) Teeth Length (mm)
98L 26 247.65 180L 48 457.20
109L 29 276.23 185L 49 466.73
113L 30 285.75 187L 50 476.25
120L 32 304.80 191L 51 485.78
124L 33 314.33 195L 52 495.30
050
050
131L (12.7mm) 35 333.38 200L (12.7mm) 53 504.83
MISUMI WEB MISUMI WEB
1.Search this keyword 135L 075 36 342.90 1.Search this keyword 202L 075 54 514.35
timing belt l 143L (19.1mm) 38 361.95 timing belt l 206L (19.1mm) 55 523.88
2.Select Economy series 150L 100 40 381.00 2.Select Economy series 210L 100 56 533.40
Brand Brand
MISUMI 154L (25.4mm) 41 390.53 MISUMI 214L (25.4mm) 57 542.93
Economy series Economy series
158L 150 42 400.05 217L 150 58 552.45
161L (38.1mm) 43 409.58 220L (38.1mm) 59 561.98
165L 44 419.10 225L 60 571.50
169L 45 428.63 228L 61 581.03
173L 46 438.15 232L 62 590.55
176L 47 447.68 236L 63 600.08

309
