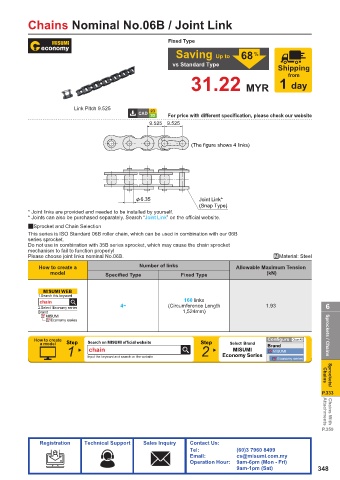

Page 351 - MiSUMi FA Mechanical Components Economy Series
P. 351

Chains Nominal No.06B / Joint Link


                                                      Fixed Type

                                                        Saving Up to        68  %
                                                       vs Standard Type
                                                                                       Shipping
                                                                                          from
                                                             31.22 MYR                  1 day


                         Link Pitch 9.525
                                                      For price with different specification, please check our website
                                                9.525 9.525


                                                             (The figure shows 4 links)








                                            П6.35              Joint Link*
                                                               (Snap Type)
           * Joint links are provided and needed to be installed by yourself.
           * Joints can also be purchased separately. Search “Joint Link” on the offi  cial website.
           2Sprocket and Chain Selection
           This series is ISO Standard 06B roller chain, which can be used in combination with our 06B
           series sprocket.
           Do not use in combination with 35B series sprocket, which may cause the chain sprocket
           mechanism to fail to function properly!
           Please choose joint links nominal No.06B.                                  .Material: Steel
              How to create a                Number of links              Allowable Maximum Tension
                  model            Specifi ed Type         Fixed Type                (kN)


                MISUMI WEB
              1.Search this keyword
               chain                                       160 links
              2.Select  Economy series  4~            (Circumference Length        1.93               6
              Brand                                       1,524mm)
                 MISUMI
                  Economy series

             How to create                                                          Configure  Clear All  Sprockets / Chains
               a model  Step  Search on MISUMI official website  Step   Select  Brand  Brand
                       1      chain                             2        MISUMI       MISUMI
                                                                      Economy Series
                             Input the keyword and search on the website
                                                                                       Economy series  Chains



                                                                                                      Sprockets/
                                                                                                    P.333




                                                                                                     Attachments
                                                                                                      Chains With
                                                                                                    P.359
