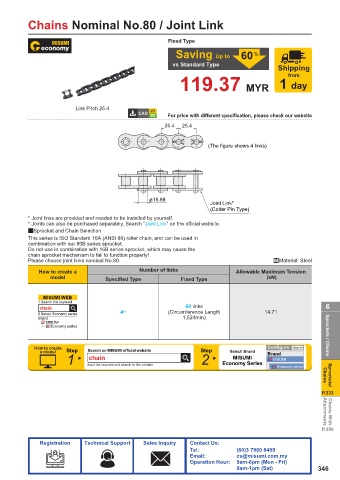

Page 349 - MiSUMi FA Mechanical Components Economy Series

Chains Nominal No.80 / Joint Link

Fixed Type

Saving Up to 60 %
vs Standard Type
Shipping
from
119.37 MYR 1 day

Link Pitch 25.4
For price with different specification, please check our website
25.4 25.4

(The figure shows 4 links)

П15.88
Joint Link*
(Cotter Pin Type)
* Joint links are provided and needed to be installed by yourself.
* Joints can also be purchased separately. Search “Joint Link” on the offi cial website.
2Sprocket and Chain Selection
This series is ISO Standard 16A (ANSI 80) roller chain, and can be used in
combination with our 80B series sprocket.
Do not use in combination with 16B series sprocket, which may cause the
chain sprocket mechanism to fail to function properly!
Please choose joint links nominal No.80. .Material: Steel
How to create a Number of links Allowable Maximum Tension
model Specifi ed Type Fixed Type (kN)

MISUMI WEB
1.Search this keyword
chain 60 links 6
2.Select Economy series 4~ (Circumference Length 14.71
Brand 1,524mm)
MISUMI
Economy series Sprockets / Chains

How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 chain 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series Chains Sprockets/

P.333

Attachments
Chains With
P.359
