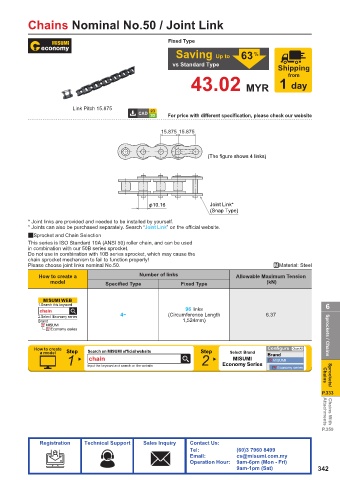

Page 345 - MiSUMi FA Mechanical Components Economy Series
P. 345

Chains Nominal No.50 / Joint Link


                                                      Fixed Type

                                                        Saving Up to        63  %
                                                       vs Standard Type
                                                                                       Shipping
                                                                                          from
                                                             43.02 MYR                  1 day


                         Link Pitch 15.875
                                                      For price with different specification, please check our website


                                                    15.875 15.875


                                                                  (The figure shows 4 links)







                                                П10.16            Joint Link*
                                                                  (Snap Type)
           * Joint links are provided and needed to be installed by yourself.
           * Joints can also be purchased separately. Search “Joint Link” on the offi  cial website.
           2Sprocket and Chain Selection
           This series is ISO Standard 10A (ANSI 50) roller chain, and can be used
           in combination with our 50B series sprocket.
           Do not use in combination with 10B series sprocket, which may cause the
           chain sprocket mechanism to fail to function properly!
           Please choose joint links nominal No.50.                                   .Material: Steel
              How to create a                Number of links              Allowable Maximum Tension
                  model            Specifi ed Type         Fixed Type                (kN)


                MISUMI WEB
              1.Search this keyword                                                                   6
               chain                                       96 links
              2.Select  Economy series  4~            (Circumference Length        6.37
              Brand                                       1,524mm)
                 MISUMI
                  Economy series                                                                      Sprockets / Chains

             How to create                                                          Configure  Clear All
               a model  Step  Search on MISUMI official website  Step   Select  Brand  Brand
                       1      chain                             2        MISUMI       MISUMI
                                                                      Economy Series
                             Input the keyword and search on the website
                                                                                       Economy series  Chains  Sprockets/

                                                                                                    P.333





                                                                                                     Attachments
                                                                                                      Chains With
                                                                                                    P.359
