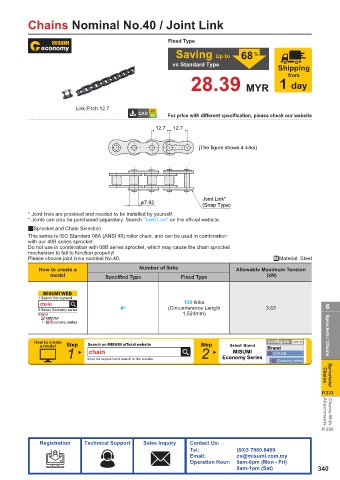

Page 343 - MiSUMi FA Mechanical Components Economy Series

Chains Nominal No.40 / Joint Link

Fixed Type

Saving Up to 68 %
vs Standard Type
Shipping
from
28.39 MYR 1 day

Link Pitch 12.7
For price with different specification, please check our website

12.7 12.7

(The figure shows 4 links)

Joint Link*
П7.92
(Snap Type)
* Joint links are provided and needed to be installed by yourself.
* Joints can also be purchased separately. Search “Joint Link” on the offi cial website.
2Sprocket and Chain Selection
This series is ISO Standard 08A (ANSI 40) roller chain, and can be used in combination
with our 40B series sprocket.
Do not use in combination with 08B series sprocket, which may cause the chain sprocket
mechanism to fail to function properly!
Please choose joint links nominal No.40. .Material: Steel
How to create a Number of links Allowable Maximum Tension
model Specifi ed Type Fixed Type (kN)

MISUMI WEB
1.Search this keyword
chain 120 links 6
2.Select Economy series 4~ (Circumference Length 3.63
Brand 1,524mm)
MISUMI
Economy series

How to create Search on MISUMI official website Configure Clear All Sprockets / Chains
a model Step Step Select Brand Brand
1 chain 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series Chains Sprockets/

P.333

Attachments
Chains With
P.359
