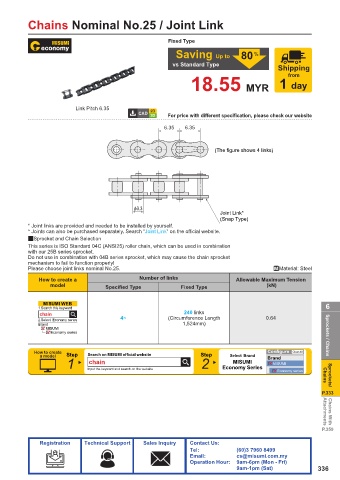

Page 339 - MiSUMi FA Mechanical Components Economy Series
P. 339

Chains Nominal No.25 / Joint Link


                                                      Fixed Type

                                                        Saving Up to        80  %
                                                       vs Standard Type
                                                                                       Shipping
                                                                                          from
                                                             18.55 MYR                  1 day


                          Link Pitch 6.35
                                                      For price with different specification, please check our website

                                                     6.35  6.35


                                                                    (The figure shows 4 links)









                                           П3.3
                                                                      Joint Link*
                                                                      (Snap Type)
           * Joint links are provided and needed to be installed by yourself.
           * Joints can also be purchased separately. Search “Joint Link” on the offi  cial website.
           2Sprocket and Chain Selection
           This series is ISO Standard 04C (ANSI25) roller chain, which can be used in combination
           with our 25B series sprocket.
           Do not use in combination with 04B series sprocket, which may cause the chain sprocket
           mechanism to fail to function properly!
           Please choose joint links nominal No.25.                                   .Material: Steel

              How to create a                Number of links              Allowable Maximum Tension
                  model            Specifi ed Type         Fixed Type                (kN)

                MISUMI WEB
              1.Search this keyword                                                                   6
               chain                                       240 links
              2.Select  Economy series  4~            (Circumference Length        0.64
              Brand                                       1,524mm)
                 MISUMI
                  Economy series                                                                      Sprockets / Chains

             How to create                                                          Configure  Clear All
               a model  Step  Search on MISUMI official website  Step   Select  Brand  Brand
                       1      chain                             2        MISUMI       MISUMI
                                                                      Economy Series
                             Input the keyword and search on the website
                                                                                       Economy series  Chains  Sprockets/

                                                                                                    P.333





                                                                                                     Attachments
                                                                                                      Chains With
                                                                                                    P.359
