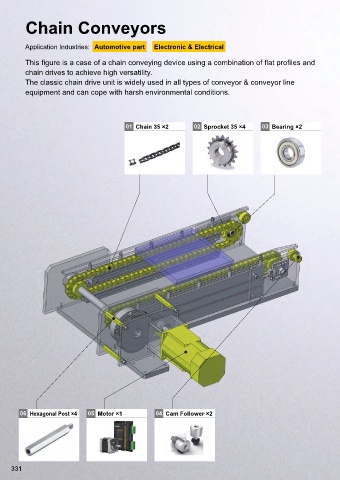

Chain Conveyors

Application Industries: Automotive part Electronic & Electrical

This figure is a case of a chain conveying device using a combination of flat profiles and
chain drives to achieve high versatility.
The classic chain drive unit is widely used in all types of conveyor & conveyor line
equipment and can cope with harsh environmental conditions.

01 Chain 35 ×2 02 Sprocket 35 ×4 03 Bearing ×2

06 Hexagonal Post ×4 05 Motor ×1 04 Cam Follower ×2
