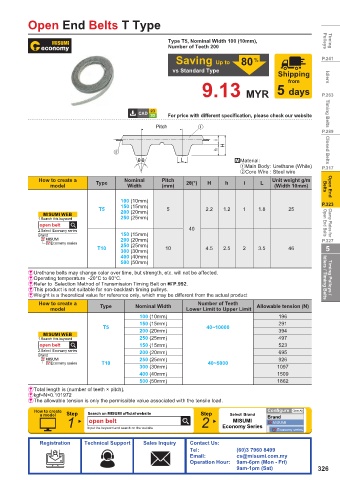

Page 329 - MiSUMi FA Mechanical Components Economy Series

Open End Belts T Type

Type T5, Nominal Width 100 (10mm), Pulleys Timing
Number of Teeth 200

Saving Up to 80 % P.241
vs Standard Type
Shipping Idlers
from
9.13 MYR 5 days P.263

For price with different specification, please check our website Timing Belts
Pitch
P.289
i
H
h Closed Belts

șș L .Material:
Main Body: Urethane (White) P.317
Core Wire : Steel wire
How to create a Nominal Pitch Unit weight g/m
model Type Width (mm) 2θ(°) H h i L (Width 10mm) Belts Open End

100 (10mm)
150 (15mm) P.323
T5 5 2.2 1.2 1 1.8 25
MISUMI WEB 200 (20mm)
1.Search this keyword 250 (25mm)
open belt Open End Belts Clamp Plates for
2.Select Economy series 40
Brand 150 (15mm)
MISUMI 200 (20mm) P.327
Economy series
T10 250 (25mm) 10 4.5 2.5 2 3.5 46 5
300 (30mm)
400 (40mm)
500 (50mm)
&Urethane belts may change color over time, but strength, etc. will not be affected.
&Operating temperature -20°C to 60°C. Idlers / Timing Belts Timing Pulleys /
&Refer to Selection Method of Transmission Timing Belt on %P.992.
&This product is not suitable for non-backlash timing pulleys.
&Weight is a theoretical value for reference only, which may be different from the actual product
How to create a Type Nominal Width Number of Teeth Allowable tension (N)
model Lower Limit to Upper Limit
100 (10mm) 196
150 (15mm) 291
T5 40~10000
MISUMI WEB 200 (20mm) 394
1.Search this keyword 250 (25mm) 497
open belt 150 (15mm) 523
2.Select Economy series 200 (20mm) 695
Brand
MISUMI 250 (25mm) 926
Economy series T10 40~5000
300 (30mm) 1097
400 (40mm) 1509
500 (50mm) 1862
&Total length is (number of teeth × pitch).
&kgf=N×0.101972
&The allowable tension is only the permissible value associated with the tensile load.

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 open belt 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
