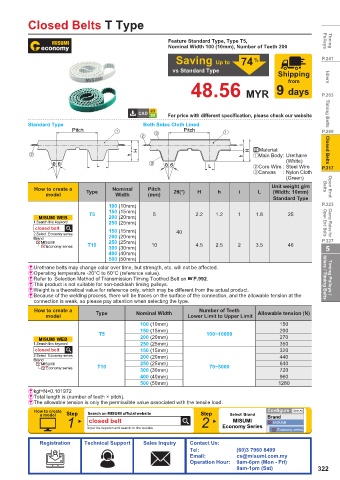

Page 325 - MiSUMi FA Mechanical Components Economy Series

Closed Belts T Type

Feature Standard Type, Type T5, Pulleys Timing
Nominal Width 100 (10mm), Number of Teeth 200

Saving Up to 74 % P.241
vs Standard Type
Shipping Idlers
from
48.56 MYR 9 days P.263

For price with different specification, please check our website Timing Belts
Standard Type Both Sides Cloth Lined
Pitch Pitch P.289

i i
H H . Material: Closed Belts
h h Main Body: Urethane
(White)
ș ș L ș ș L Core Wire : Steel Wire P.317
Canvas : Nylon Cloth
(Green)
Unit weight g/m Belts Open End
How to create a Type Nominal Pitch 2θ(°) H h i L (Width: 10mm)
model Width (mm)
Standard Type
100 (10mm) P.323
150 (15mm)
T5 5 2.2 1.2 1 1.8 25
MISUMI WEB 200 (20mm)
1.Search this keyword 250 (25mm) Open End Belts Clamp Plates for
closed belt
2.Select Economy series 150 (15mm) 40
Brand 200 (20mm)
MISUMI 250 (25mm) P.327
Economy series T10 300 (30mm) 10 4.5 2.5 2 3.5 46 5
400 (40mm)
500 (50mm)
&Urethane belts may change color over time, but strength, etc. will not be affected.
&Operating temperature -20°C to 60°C (reference value).
&Refer to Selection Method of Transmission Timing Toothed Belt on %P.992. Idlers / Timing Belts Timing Pulleys /
&This product is not suitable for non-backlash timing pulleys.
&Weight is a theoretical value for reference only, which may be different from the actual product.
&Because of the welding process, there will be traces on the surface of the connection, and the allowable tension at the
connection is weak, so please pay attention when selecting the type.
How to create a Type Nominal Width Number of Teeth Allowable tension (N)
model Lower Limit to Upper Limit
100 (10mm) 150
150 (15mm) 200
T5 100~10000
MISUMI WEB 200 (20mm) 270
1.Search this keyword 250 (25mm) 350
closed belt 150 (15mm) 320
2.Select Economy series 200 (20mm) 440
Brand
MISUMI 250 (25mm) 640
Economy series T10 70~5000
300 (30mm) 720
400 (40mm) 960
500 (50mm) 1280
&kgf=N×0.101972
&Total length is (number of teeth × pitch).
&The allowable tension is only the permissible value associated with the tensile load.
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 closed belt 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
