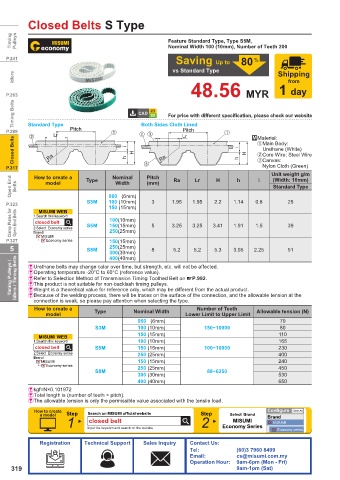

Page 322 - MiSUMi FA Mechanical Components Economy Series

Closed Belts S Type

Timing Pulleys Feature Standard Type, Type S5M,
Nominal Width 100 (10mm), Number of Teeth 200

P.241 %
Saving Up to 80
vs Standard Type Shipping
Idlers from

48.56 MYR 1 day
P.263
Timing Belts For price with different specification, please check our website

Both Sides Cloth Lined
Pitch
P.289 Standard Type Pitch Lr . Material:
Lr

Closed Belts Ra i h H Ra i h H Main Body:
Urethane (White)
Core Wire: Steel Wire
Nylon Cloth (Green)
P.317 Canvas:
Unit weight g/m
Nominal
How to create a
Pitch
Open End Belts model Type Width (mm) Ra Lr H h i Standard Type
(Width: 10mm)
100 (10mm)
S3M 060 (6mm) 3 1.95 1.95 2.2 1.14 0.8 25
P.323 MISUMI WEB 150 (15mm)
Clamp Plates for Open End Belts 1.Search this keyword S5M 100(10mm) 5 3.25 3.25 3.41 1.91 1.5 39
closed belt
150(15mm)
2.Select Economy series
250(25mm)
Economy series
P.327 Brand MISUMI 150(15mm)
5 S8M 250(25mm) 8 5.2 5.2 5.3 3.05 2.25 51
300(30mm)
400(40mm)
Timing Pulleys / Idlers / Timing Belts &Urethane belts may change color over time, but strength, etc. will not be affected.
&Operating temperature -20°C to 60°C (reference value).
&Refer to Selection Method of Transmission Timing Toothed Belt on %P.992.
&This product is not suitable for non-backlash timing pulleys.
&Weight is a theoretical value for reference only, which may be different from the actual product.
&Because of the welding process, there will be traces on the surface of the connection, and the allowable tension at the
connection is weak, so please pay attention when selecting the type.
How to create a Number of Teeth
model Type Nominal Width Lower Limit to Upper Limit Allowable tension (N)
060 (6mm) 70
S3M 100 (10mm) 150~10000 80
150 (15mm) 110
MISUMI WEB
1.Search this keyword 100 (10mm) 165
closed belt S5M 150 (15mm) 100~10000 230
2.Select Economy series 250 (25mm) 400
Brand
MISUMI 150 (15mm) 240
Economy series 250 (25mm) 450
S8M 88~6250
300 (30mm) 530
400 (40mm) 650
&kgf=N×0.101972
&Total length is (number of teeth × pitch).
&The allowable tension is only the permissible value associated with the tensile load.
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 closed belt 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
