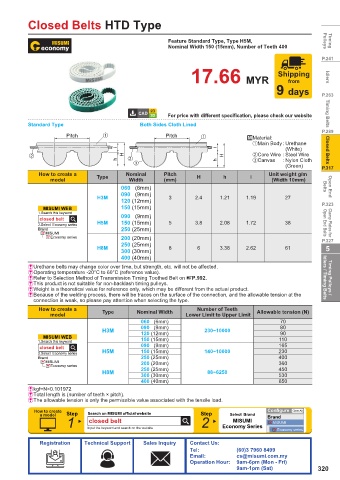

Page 323 - MiSUMi FA Mechanical Components Economy Series

Closed Belts HTD Type

Feature Standard Type, Type H5M, Pulleys Timing
Nominal Width 150 (15mm), Number of Teeth 400

P.241
Shipping
17.66 MYR from Idlers

9 days P.263

For price with different specification, please check our website Timing Belts
Standard Type Both Sides Cloth Lined
P.289
Pitch Pitch . Material:
Main Body: Urethane
(White) Closed Belts
i i
H H Core Wire : Steel Wire
h h Canvas : Nylon Cloth

(Green) P.317
How to create a Nominal Pitch Unit weight g/m
model Type Width (mm) H h i (Width 10mm)
060 (6mm) Belts Open End
090 (9mm)
H3M 3 2.4 1.21 1.19 27
120 (12mm)
MISUMI WEB 150 (15mm) P.323
1.Search this keyword
closed belt 090 (9mm)
2.Select Economy series H5M 150 (15mm) 5 3.8 2.08 1.72 38 Open End Belts Clamp Plates for
Brand 250 (25mm)
MISUMI
Economy series 200 (20mm) P.327
250 (25mm)
H8M 8 6 3.38 2.62 61 5
300 (30mm)
400 (40mm)
&Urethane belts may change color over time, but strength, etc. will not be affected.
&Operating temperature -20°C to 60°C (reference value).
&Refer to Selection Method of Transmission Timing Toothed Belt on %P.992. Idlers / Timing Belts Timing Pulleys /
&This product is not suitable for non-backlash timing pulleys.
&Weight is a theoretical value for reference only, which may be different from the actual product.
&Because of the welding process, there will be traces on the surface of the connection, and the allowable tension at the
connection is weak, so please pay attention when selecting the type.
How to create a Type Nominal Width Number of Teeth Allowable tension (N)
model Lower Limit to Upper Limit
060 (6mm) 70
090 (9mm) 80
H3M 230~10000
MISUMI WEB 120 (12mm) 90
1.Search this keyword 150 (15mm) 110
closed belt 090 (9mm) 165
2.Select Economy series H5M 150 (15mm) 140~10000 230
Brand 250 (25mm) 400
MISUMI 200 (20mm) 360
Economy series
H8M 250 (25mm) 88~6250 450
300 (30mm) 530
400 (40mm) 650
&kgf=N×0.101972
&Total length is (number of teeth × pitch).
&The allowable tension is only the permissible value associated with the tensile load.
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 closed belt 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
