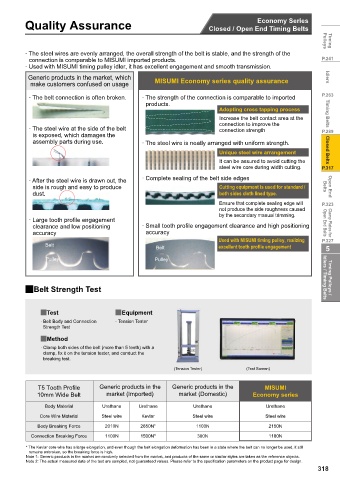

Economy Series
Quality Assurance Closed / Open End Timing Belts

· The steel wires are evenly arranged, the overall strength of the belt is stable, and the strength of the Pulleys Timing
connection is comparable to MISUMI imported products. P.241
· Used with MISUMI timing pulley idler, it has excellent engagement and smooth transmission.
Generic products in the market, which Idlers
make customers confused on usage MISUMI Economy series quality assurance

· The belt connection is often broken. · The strength of the connection is comparable to imported P.263
products.
Adopting cross tapping process
Increase the belt contact area at the Timing Belts
connection to improve the
· The steel wire at the side of the belt connection strength P.289
is exposed, which damages the
assembly parts during use. · The steel wire is neatly arranged with uniform strength.y
Unique steel wire arrangement Closed Belts
It can be assured to avoid cutting the
steel wire core during width cutting. P.317

· After the steel wire is drawn out, the · Complete sealing of the belt side edges
side is rough and easy to produce Cutting equipment is used for standard / Belts Open End
dust. both sides cloth lined type.
Ensure that complete sealing edge will P.323
not produce the side roughness caused
by the secondary manual trimming.
· Large tooth profile engagement
clearance and low positioning · Small tooth profile engagement clearance and high positioning Open End Belts Clamp Plates for
accuracy accuracy
Used with MISUMI timing pulley, realizing P.327
Belt excellent tooth profile engagement
Belt 5
Pulley Pulley

2Belt Strength Test Idlers / Timing Belts Timing Pulleys /

2Test 2Equipment
· Belt Body and Connection · Tension Tester
Strength Test
2Method
· Clamp both sides of the belt (more than 5 teeth) with a
clamp, fix it on the tension tester, and conduct the
breaking test.
(Tension Tester) (Test Screen)

T5 Tooth Profile Generic products in the Generic products in the MISUMI
10mm Wide Belt market (Imported) market (Domestic) Economy series

Body Material Urethane Urethane Urethane Urethane
Core Wire Material Steel wire Kevlar Steel wire Steel wire
Body Breaking Force 2010N 2650N* 1100N 2150N
Connection Breaking Force 1100N 1500N* 380N 1180N

* The Kevlar core wire has a large elongation, and even though the belt elongation deformation has been in a state where the belt can no longer be used, it still
remains unbroken, so the breaking force is high.
Note 1: Generic products in the market are randomly selected from the market, and products of the same or similar styles are taken as the reference objects.
Note 2: The actual measured data of the test are sampled, not guaranteed values. Please refer to the specification parameters on the product page for design.
