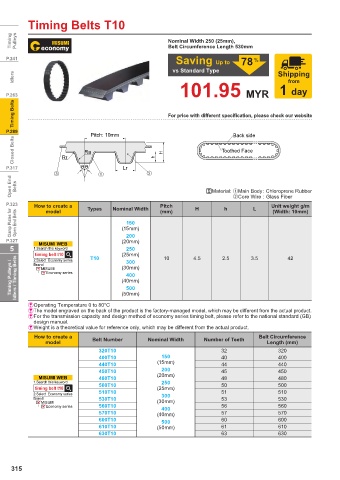

Page 318 - MiSUMi FA Mechanical Components Economy Series

Timing Belts T10

Timing Pulleys Nominal Width 250 (25mm),
Belt Circumference Length 530mm

P.241 %
Saving Up to 78
vs Standard Type Shipping
Idlers from

101.95 MYR 1 day
P.263
Timing Belts For price with different specification, please check our website

P.289
Pitch: 10mm Back side
Closed Belts Rr Ra h H Toothed Face

P.317 șș Lr

Open End Belts .Material: Main Body : Chloroprene Rubber

P.323 How to create a Types Nominal Width Pitch H h Core Wire : Glass Fiber
Unit weight g/m
L
Clamp Plates for Open End Belts (15mm)
model
(Width: 10mm)
(mm)
150
200
P.327 MISUMI WEB (20mm)
5 1.Search this keyword 250
timing belt t10 T10 (25mm) 10 4.5 2.5 3.5 42
2.Select Economy series
Timing Pulleys / Idlers / Timing Belts MISUMI (30mm)
300
Brand
Economy series
400
(40mm)
500
&Operating Temperature 0 to 80°C (50mm)
&The model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
& For the transmission capacity and design method of economy series timing belt, please refer to the national standard (GB)
design manual.
&Weight is a theoretical value for reference only, which may be different from the actual product.
How to create a Belt Number Nominal Width Number of Teeth Belt Circumference
model Length (mm)
320T10 32 320
400T10 150 40 400
440T10 (15mm) 44 440
450T10 200 45 450
MISUMI WEB 480T10 (20mm) 48 480
1.Search this keyword 500T10 250 50 500
timing belt t10 (25mm)
2.Select Economy series 510T10 51 510
Brand 530T10 300 53 530
MISUMI (30mm)
Economy series 560T10 400 56 560
570T10 (40mm) 57 570
600T10 500 60 600
610T10 (50mm) 61 610
630T10 63 630
