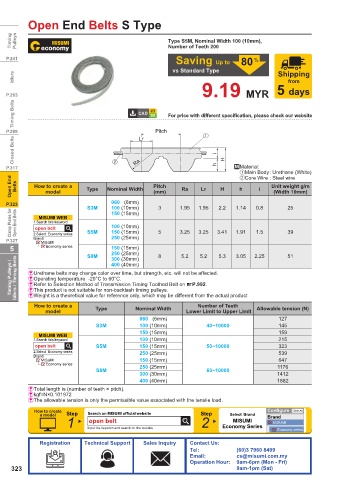

Page 326 - MiSUMi FA Mechanical Components Economy Series

Open End Belts S Type

Timing Pulleys Type S5M, Nominal Width 100 (10mm),
Number of Teeth 200

P.241 %
Saving Up to 80
vs Standard Type Shipping
Idlers from

9.19 MYR 5 days
P.263
Timing Belts For price with different specification, please check our website

P.289 Pitch

Closed Belts i
Lr

P.317 Ra h H .Material:
Main Body: Urethane (White)
Open End Belts How to create a Type Nominal Width Pitch Ra Lr H h i Unit weight g/m
Core Wire : Steel wire
(Width 10mm)
(mm)
model
P.323 S3M 060 (6mm) 3 1.95 1.95 2.2 1.14 0.8 25
100 (10mm)
Clamp Plates for Open End Belts 1.Search this keyword 100 (10mm)
150 (15mm)
MISUMI WEB
open belt
250 (25mm)
Brand
P.327 2.Select Economy series S5M 150 (15mm) 5 3.25 3.25 3.41 1.91 1.5 39
MISUMI
5 Economy series S8M 150 (15mm) 8 5.2 5.2 5.3 3.05 2.25 51
250 (25mm)
300 (30mm)
Timing Pulleys / Idlers / Timing Belts &Urethane belts may change color over time, but strength, etc. will not be affected.
400 (40mm)
&Operating temperature -20°C to 60°C.
&Refer to Selection Method of Transmission Timing Toothed Belt on %P.992.
&This product is not suitable for non-backlash timing pulleys.
&Weight is a theoretical value for reference only, which may be different from the actual product
How to create a Type Nominal Width Number of Teeth Allowable tension (N)
model Lower Limit to Upper Limit
060 (6mm) 127
S3M 100 (10mm) 40~10000 145
150 (15mm) 159
MISUMI WEB
1.Search this keyword 100 (10mm) 215
open belt S5M 150 (15mm) 50~10000 323
2.Select Economy series 250 (25mm) 539
Brand
MISUMI 150 (15mm) 647
Economy series 250 (25mm) 1176
S8M 60~10000
300 (30mm) 1412
400 (40mm) 1882
&Total length is (number of teeth × pitch).
&kgf=N×0.101972
&The allowable tension is only the permissible value associated with the tensile load.
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 open belt 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
