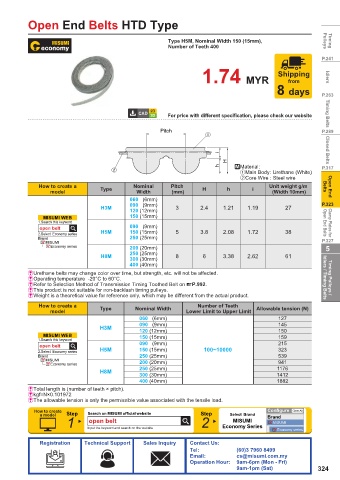

Page 327 - MiSUMi FA Mechanical Components Economy Series

Open End Belts HTD Type

Type H5M, Nominal Width 150 (15mm), Pulleys Timing
Number of Teeth 400

P.241
Shipping
1.74 MYR from Idlers

8 days P.263

For price with different specification, please check our website Timing Belts

Pitch P.289

i Closed Belts
H
h .Material:
Main Body: Urethane (White) P.317
Core Wire : Steel wire
How to create a Type Nominal Pitch H h i Unit weight g/m Belts Open End
model Width (mm) (Width 10mm)
060 (6mm)
090 (9mm) P.323
H3M 3 2.4 1.21 1.19 27
120 (12mm)
MISUMI WEB 150 (15mm)
1.Search this keyword Open End Belts Clamp Plates for
open belt 090 (9mm)
2.Select Economy series H5M 150 (15mm) 5 3.8 2.08 1.72 38
Brand 250 (25mm)
MISUMI P.327
Economy series 200 (20mm) 5
250 (25mm)
H8M 8 6 3.38 2.62 61
300 (30mm)
400 (40mm)
&Urethane belts may change color over time, but strength, etc. will not be affected.
&Operating temperature -20°C to 60°C. Idlers / Timing Belts Timing Pulleys /
&Refer to Selection Method of Transmission Timing Toothed Belt on %P.992.
&This product is not suitable for non-backlash timing pulleys.
&Weight is a theoretical value for reference only, which may be different from the actual product.
How to create a Type Nominal Width Number of Teeth Allowable tension (N)
model Lower Limit to Upper Limit
060 (6mm) 127
090 (9mm) 145
H3M 120 (12mm) 150
MISUMI WEB
1.Search this keyword 150 (15mm) 159
open belt 090 (9mm) 215
2.Select Economy series H5M 150 (15mm) 100~10000 323
Brand 250 (25mm) 539
MISUMI
Economy series 200 (20mm) 941
250 (25mm) 1176
H8M
300 (30mm) 1412
400 (40mm) 1882
&Total length is (number of teeth × pitch).
&kgf=N×0.101972
&The allowable tension is only the permissible value associated with the tensile load.
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 open belt 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
