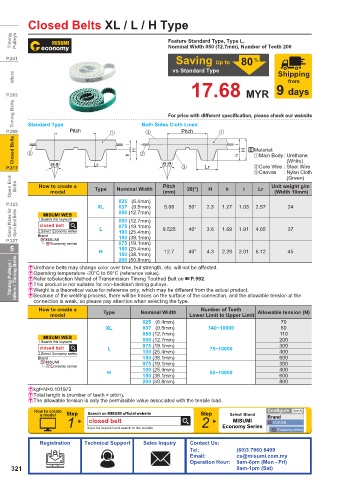

Page 324 - MiSUMi FA Mechanical Components Economy Series

Closed Belts XL / L / H Type

Timing Pulleys Feature Standard Type, Type L,
Nominal Width 050 (12.7mm), Number of Teeth 200

P.241 %
Saving Up to 80
vs Standard Type Shipping
Idlers from

17.68 MYR 9 days
P.263
Timing Belts For price with different specification, please check our website

Pitch
P.289 Standard Type Pitch Both Sides Cloth Lined

Closed Belts i h H i h H . Material:
Main Body: Urethane
(White)
P.317 ș ș Lr ș ș Lr Core Wire : Steel Wire
Canvas : Nylon Cloth
Open End Belts How to create a Type Nominal Width Pitch 2θ(°) H h i Lr Unit weight g/m
(Green)
(Width 10mm)
model
(mm)
025 (6.4mm)
P.323 XL 037 (9.5mm) 5.08 50° 2.3 1.27 1.03 2.57 24
Clamp Plates for Open End Belts 1.Search this keyword L 050 (12.7mm) 9.525 40° 3.6 1.69 1.91 4.65 37
050 (12.7mm)
MISUMI WEB
closed belt
075 (19.1mm)
2.Select Economy series
150 (38.1mm)
P.327 Brand MISUMI 100 (25.4mm)
075 (19.1mm)
Economy series
5 H 100 (25.4mm) 12.7 40° 4.3 2.29 2.01 6.12 45
150 (38.1mm)
200 (50.8mm)
Timing Pulleys / Idlers / Timing Belts &Urethane belts may change color over time, but strength, etc. will not be affected.
&Operating temperature -20°C to 60°C (reference value).
&Refer toSelection Method of Transmission Timing Toothed Belt on %P.992.
&This product is not suitable for non-backlash timing pulleys.
&Weight is a theoretical value for reference only, which may be different from the actual product.
&Because of the welding process, there will be traces on the surface of the connection, and the allowable tension at the
connection is weak, so please pay attention when selecting the type.
How to create a Type Nominal Width Number of Teeth Allowable tension (N)
model Lower Limit to Upper Limit
025 (6.4mm) 70
XL 037 (9.5mm) 140~10000 80
050 (12.7mm) 110
MISUMI WEB
1.Search this keyword 050 (12.7mm) 200
closed belt L 075 (19.1mm) 75~10000 300
2.Select Economy series 100 (25.4mm) 400
Brand 150 (38.1mm) 600
MISUMI 075 (19.1mm) 300
Economy series
H 100 (25.4mm) 55~10000 400
150 (38.1mm) 600
200 (50.8mm) 800
&kgf=N×0.101972
&Total length is (number of teeth × pitch).
&The allowable tension is only the permissible value associated with the tensile load.
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 closed belt 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
