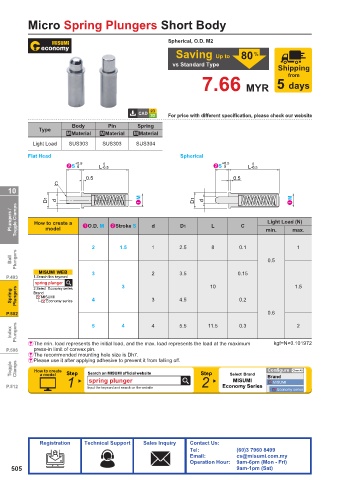

Page 508 - MiSUMi FA Mechanical Components Economy Series

Micro Spring Plungers Short Body

Spherical, O.D. M2

Saving Up to 80 %
vs Standard Type
Shipping
from
7.66 MYR 5 days

For price with different specification, please check our website
Body Pin Spring
Type
.Material .Material .Material
Light Load SUS303 SUS303 SUS304
Flat Head Spherical
+0.5 0 +0.5 0
S 0 L-0.5 S 0 L-0.5
0.5 0.5
C
10
D1 d M D1 d M
Plungers / Toggle Clamps How to create a O.D. M Stroke S d D1 L C min. max.

Light Load (N)
model

2 1.5 1 2.5 8 0.1 1
Ball Plungers 0.5

MISUMI WEB 3 2 3.5 0.15
P.493 1.Search this keyword
spring plunger 3 10 1.5
2.Select Economy series
Spring Plungers Brand MISUMI 4 3 4.5 0.2
Economy series
P.502 0.6

Index Plungers 5 4 4 5.5 11.5 0.3 2

& The min. load represents the initial load, and the max. load represents the load at the maximum kgf=N×0.101972
P.506 press-in limit of convex pin.
&The recommended mounting hole size is Dh7.
&Please use it after applying adhesive to prevent it from falling off.
