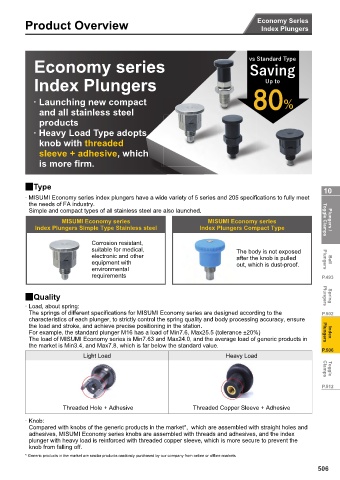

Page 509 - MiSUMi FA Mechanical Components Economy Series

Product Overview Economy Series
Index Plungers

Economy series YV 6WDQGDUG 7\SH
6DYLQJ
Index Plungers 8S WR

· Launching new compact ᵖᵎ
and all stainless steel
products
· Heavy Load Type adopts
knob with threaded
sleeve + adhesive, which
is more firm.

2Type
10
· MISUMI Economy series index plungers have a wide variety of 5 series and 205 specifications to fully meet
the needs of FA industry.
Simple and compact types of all stainless steel are also launched.
MISUMI Economy series MISUMI Economy series Toggle Clamps Plungers /
Index Plungers Simple Type Stainless steel Index Plungers Compact Type
Corrosion resistant,
suitable for medical, The body is not exposed
electronic and other after the knob is pulled
equipment with out, which is dust-proof. Plungers Ball
environmental
requirements P.493

2Quality Plungers Spring
· Load, about spring:
The springs of different specifications for MISUMI Economy series are designed according to the P.502
characteristics of each plunger, to strictly control the spring quality and body processing accuracy, ensure
the load and stroke, and achieve precise positioning in the station.
For example, the standard plunger M16 has a load of Min7.6, Max25.5 (tolerance ±20%) Plungers Index
The load of MISUMI Economy series is Min7.63 and Max24.0, and the average load of generic products in
the market is Min3.4, and Max7.8, which is far below the standard value.
P.506
Light Load Heavy Load Clamps Toggle

P.512

Threaded Hole + Adhesive Threaded Copper Sleeve + Adhesive
· Knob:
Compared with knobs of the generic products in the market*, which are assembled with straight holes and
adhesives, MISUMI Economy series knobs are assembled with threads and adhesives, and the index
plunger with heavy load is reinforced with threaded copper sleeve, which is more secure to prevent the
knob from falling off.
* Generic products in the market are similar products randomly purchased by our company from online or offline markets
