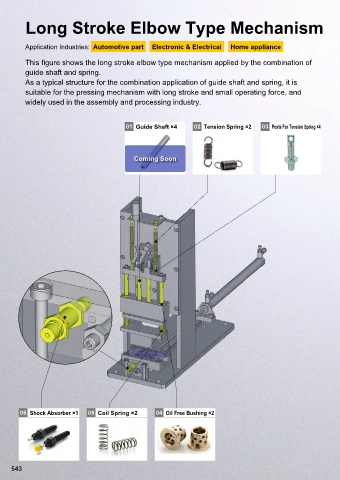

Long Stroke Elbow Type Mechanism

Application Industries: Automotive part Electronic & Electrical Home appliance

This figure shows the long stroke elbow type mechanism applied by the combination of
guide shaft and spring.
As a typical structure for the combination application of guide shaft and spring, it is
suitable for the pressing mechanism with long stroke and small operating force, and
widely used in the assembly and processing industry.

01 Guide Shaft ×4 02 Tension Spring ×2 03 Posts For Tension Spring ×4

Coming Soon

06 Shock Absorber ×1 05 Coil Spring ×2 04 Oil Free Bushing ×2
