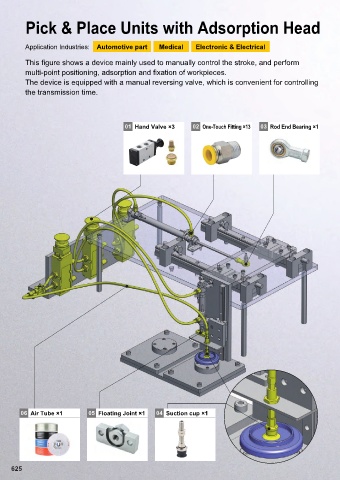

Pick & Place Units with Adsorption Head

Application Industries: Automotive part Medical Electronic & Electrical

This figure shows a device mainly used to manually control the stroke, and perform
multi-point positioning, adsorption and fixation of workpieces.
The device is equipped with a manual reversing valve, which is convenient for controlling
the transmission time.

01 Hand Valve ×3 02 One-Touch Fitting ×13 03 Rod End Bearing ×1

06 Air Tube ×1 05 Floating Joint ×1 04 Suction cup ×1
