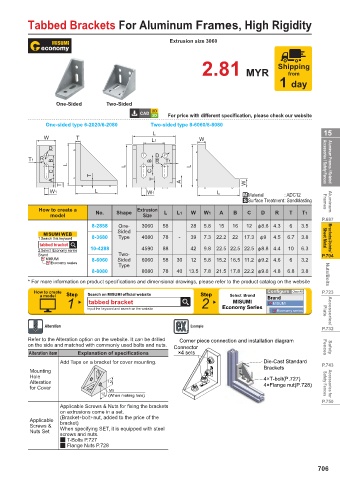

Page 709 - MiSUMi FA Mechanical Components Economy Series

Tabbed Brackets For Aluminum Frames, High Rigidity

Extrusion size 3060

Shipping
2.81 MYR from
1 day

One-Sided Two-Sided
For price with different specification, please check our website
One-sided type 6-2020/6-2080 Two-sided type 8-6060/8-8080
L 15
W T W
L1
D
D
T1 R B B R T1 Accessories / Safety Fences Aluminum Frames / Related
L
L L
C C
T
A T A
T W
W1 L W1 L
.Material : ADC12
4Surface Treatment: Sandblasting Frames Aluminum
How to create a Extrusion
model No. Shape Size L L1 W W1 A B C D R T T1
P.687
8-2858 One- 3060 58 28 5.8 15 16 12 П8.6 4.3 6 3.5
Sided
MISUMI WEB
1.Search this keyword 8-3680 Type 4080 78 - 39 7.3 22.2 22 17.3 П9 4.5 6.7 3.8 Sheet Metal Brackets/Joints/
tabbed bracket
2.Select Economy series 10-4288 4590 88 42 9.8 22.5 22.5 22.5 П8.8 4.4 10 6.3
Brand Two- P.704
MISUMI 8-6060 Sided 6060 58 30 12 5.8 15.2 16.5 11.2 П9.2 4.6 6 3.2
Economy series
Type
8-8080 8080 78 40 13.5 7.8 21.5 17.8 22.2 П9.6 4.8 6.8 3.8 Nuts/Bolts
* For more information on product specifi cations and dimensional drawings, please refer to the product catalog on the website
How to create Search on MISUMI official website Configure Clear All P.723
a model Step Step Select Brand Brand
1 tabbed bracket 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series Plate Accessories/
Alteration Example
P.732
Refer to the Alteration option on the website. It can be drilled Corner piece connection and installation diagram
on the side and matched with commonly used bolts and nuts. Connector Fences Safety
Alteration item Explanation of specifi cations ×4 sets
Add Taps on a bracket for cover mounting. Die-Cast Standard
Brackets P.743
Mounting
Hole 4×T-bolt(P.727)
Alteration 12 4×Flange nut(P.728) Safety Fences Accessories for
for Cover M5
12 (When making hole)
P.750
Applicable Screws & Nuts for fi xing the brackets
on extrusions come in a set.
(Bracket+bolt+nut, added to the price of the
Applicable bracket)
Screws & When specifying SET, it is equipped with steel
Nuts Set
screws and nuts.
2 T-Bolts P.727
2 Flange Nuts P.728
