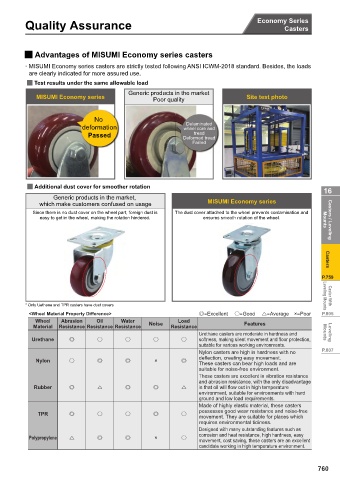

Quality Assurance Economy Series
Casters

2 Advantages of MISUMI Economy series casters
· MISUMI Economy series casters are strictly tested following ANSI ICWM-2018 standard. Besides, the loads
are clearly indicated for more assured use.
2 Test results under the same allowable load
Generic products in the market
MISUMI Economy series Poor quality Site test photo

No
Delaminated
deformation wheel core and
tread
Passed Deformed tread
Failled

2 Additional dust cover for smoother rotation
16
Generic products in the market,
which make customers confused on usage MISUMI Economy series
Since there is no dust cover on the wheel part, foreign dust is The dust cover attached to the wheel prevents contamination and
easy to get in the wheel, making the rotation hindered. ensures smooth rotation of the wheel. Mounts Casters / Leveling

Casters
P.759

* Only Uethane and TPR casters have dust covers Leveling Mounts Caster With
<Wheel Material Property Diff erence> 1=Excellent (=Good ˚=Average ×=Poor P.805
Wheel Abrasion Oil Water Noise Load Features
Material Resistance Resistance Resistance Resistance
Urethane casters are moderate in hardness and Mounts Leveling
Urethane 1 ( ( ( ( softness, making silent movement and fl oor protection,
suitable for various working environments.
Nylon casters are high in hardness with no P.807
defl ection, creating easy movement.
Nylon ( 1 1 × 1
These casters can bear high loads and are
suitable for noise-free environment.
These casters are excellent in vibration resistance
and abrasion resistance, with the only disadvantage
Rubber 1 ˚ 1 1 ˚ is that oil will fl ow out in high temperature
environment, suitable for environments with hard
ground and low load requirements.
Made of highly elastic material, these casters
possesses good wear resistance and noise-free
TPR 1 ( ( 1 (
movement. They are suitable for places which
requires environmental tidiness.
Designed with many outstanding features such as
corrosion and heat resistance, high hardness, easy
Polypropylene ˚ 1 1 × (
movement, cost saving, these casters are an excellent
candidate working in high temparature environment.
