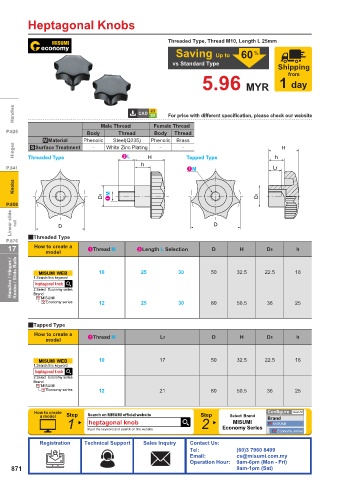

Page 874 - MiSUMi FA Mechanical Components Economy Series

Heptagonal Knobs

Threaded Type, Thread M10, Length L 25mm
60 %
Saving Up to
vs Standard Type
Shipping
from
5.96 MYR 1 day

Handles For price with different specification, please check our website

Male Thread Female Thread
P.825 Body Thread Body Thread
.Material Phenolic Steel(Q235) Phenolic Brass
Hinges Threaded Type - White Zinc Plating H - - Tapped Type h H
4Surface Treatment
L
h
P.841 M Lf
Knobs

D1 M D1
P.858
Linear slide rail D D

P.876 2Threaded Type
17 How to create a Thread M Length L Selection D H D1 h
model
Handles / Hinges / Knobs / Slide Rails 1.Search this keyword 10 25 30 50 32.5 22.5 16
MISUMI WEB
heptagonal knob
2.Select Economy series
Brand
MISUMI
Economy series 12 25 30 80 50.5 36 25

2Tapped Type
How to create a
model Thread M Lf D H D1 h

MISUMI WEB 10 17 50 32.5 22.5 16
1.Search this keyword
heptagonal knob
2.Select Economy series
Brand
MISUMI
Economy series 12 21 80 50.5 36 25

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 heptagonal knob 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
