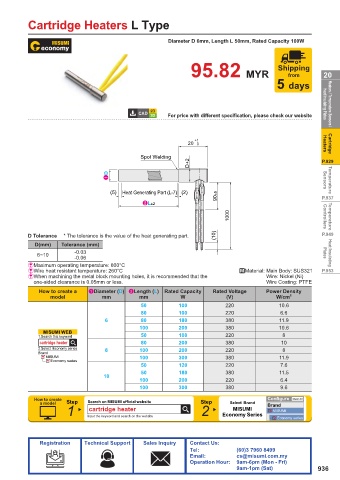

Page 939 - MiSUMi FA Mechanical Components Economy Series

Cartridge Heaters L Type

Diameter D 6mm, Length L 50mm, Rated Capacity 100W

Shipping
95.82 MYR from 20
5 days

For price with different specification, please check our website Heat Insulating Plates Heaters / Temperature Sensors /

+1
20 0 Heaters Cartridge
Spot Welding
D+2 P.929

D Sensors Temperature

(5) Heat Generating Part (L-7) (2)
90±5 P.937
L±2
1000 Controllers Temperature

D Tolerance * The tolerance is the value of the heat generating part. (10) P.949
D(mm) Tolerance (mm)
-0.03
6~10 Plates Heat Insulating
-0.06
&Maximum operating temperature: 600°C
&Wire heat resistant temperature: 260°C .Material: Main Body: SUS321 P.953
& When machining the metal block mounting holes, it is recommended that the Wire: Nickel (Ni)
one-sided clearance is 0.05mm or less. Wire Coating: PTFE
How to create a Diameter (D) Length (L) Rated Capacity Rated Voltage Power Density
model mm mm W (V) W/cm 2
50 100 220 10.6
80 100 220 6.6
6 80 180 380 11.9
100 200 380 10.6
MISUMI WEB
1.Search this keyword 50 100 220 8
cartridge heater 80 200 380 10
2.Select Economy series 8 100 200 220 8
Brand
MISUMI 100 300 380 11.9
Economy series
50 120 220 7.6
50 180 380 11.5
10
100 200 220 6.4
100 300 380 9.6
How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 cartridge heater 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
