igubal igubal accessories | Product range New Notes igubal
®
®
accessories accessories

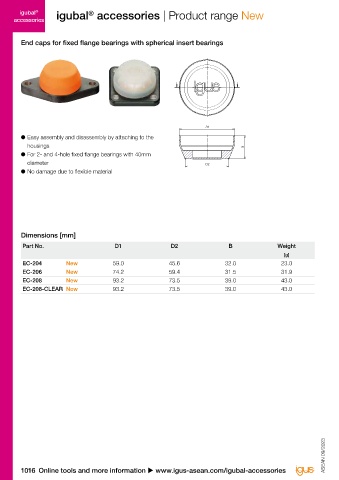

End caps for fixed flange bearings with spherical insert bearings
D1
● Easy assembly and disassembly by attaching to the
housings B
● For 2- and 4-hole fixed flange bearings with 40mm
diameter D2
● No damage due to flexible material
Dimensions [mm]
Part No. D1 D2 B Weight
[g]
EC-204 New 59.0 45.6 32.0 23.0
EC-206 New 74.2 59.4 31.5 31.9
EC-208 New 93.2 73.5 39.0 43.0
EC-208-CLEAR New 93.2 73.5 39.0 43.0
