igubal igubal accessories | Product range igubal accessories | Product range igubal
®
®
accessories accessories

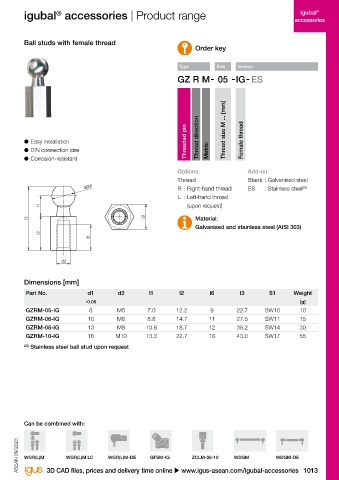

Fixing collar, Fixing collar made of Ball studs with female thread
galvanised steel polymer Order key Order key
with threaded pin
Type Size Version Type Size Version

Fixing collar without thread Shaft diameter Pre-assembled (screw) Thread direction Thread size M ... [mm]

● Easy installation Metric [mm] ● Easy installation Threaded pin Female thread
● DIN 705 (lightweight series) ● DIN connection size Metric
● Incl. DIN 914 threaded pin (Allen key) ● Corrosion-resistant
Material:
Galvanised and stainless steel (AISI 303) Options: Add-on:
Thread Blank : Galvanised steel
SØd1 R : Right-hand thread ES : Stainless steel 28)
l1 S1S1 S1
L : Left-hand thread
d3 d3 d3
d2 d1 l1 (upon request)
S1
l3 Material:
Galvanised and stainless steel (AISI 303)
S1 45° l2
B l6
d1d1 d1
d3 d2d2 d2 BB B
f
d2
Fixing collar, steel Polymer fixing collar Image exemplary

Dimensions [mm] Dimensions [mm]

Part No. d1 d2 B f d3 l1 S1 Weight Part No. d1 d2 l1 l2 l6 l3 S1 Weight
[g] -0.05 [g]
SRM-S17-V 17 28 12 1.2 M6 6 SW3 38.0 GZRM-05-IG 8 M5 7.0 12.2 9 22.7 SW10 10
SRM-S20-V 20 32 14 1.4 M6 6 SW3 53.0 GZRM-06-IG 10 M6 8.8 14.7 11 27.5 SW11 15
SRM-S25-V 25 40 16 1.6 M8 8 SW4 95.6 GZRM-08-IG 13 M8 10.8 18.7 12 35.2 SW14 30
SRM-S30-V 30 45 16 1.6 M8 8 SW4 111.0 GZRM-10-IG 16 M10 13.3 22.7 16 43.0 SW17 55
SRM-S35-V 35 56 16 1.6 M8 10 SW4 187.0 28) Stainless steel ball stud upon request
SRM-S40-V 40 63 18 1.8 M10 10 SW5 261.0
SRM-S45-V 45 70 18 1.8 M10 12 SW5 317.0
SRM-S50-V 50 80 18 1.8 M10 14 SW5 429.0

Part No. d1 d2 B d3 S1 Weight
[g]
SRM-S20-V-KS New 20 40 14 M4 SW3 19.9
SRM-S25-V-KS New 25 45 14 M4 SW3 20.4
SRM-S30-V-KS New 30 54 14 M4 SW3 29.8
SRM-S40-V-KS New 40 60 14 M4 SW3 31.2 Can be combined with:
SRM-S50-V-KS New 50 78 18 M6 SW5 65.4

Available from stock
Upon request ASEAN 09/2023 ASEAN 09/2023 WGR(L)M WGR(L)M LC WGR(L)M-DE GFSM-IG ZCLM-06-10 WDGM WDGM-DE
1012 Online tools and more information u www.igus-asean.com/igubal-accessories 3D CAD files, prices and delivery time online u www.igus-asean.com/igubal-accessories 1013
