igubal
®
®

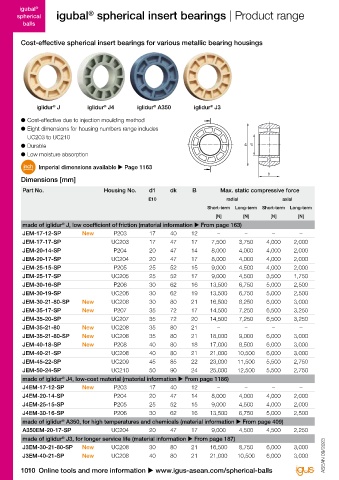

spherical igubal spherical insert bearings | Product range
balls

Cost-effective spherical insert bearings for various metallic bearing housings

iglidur J iglidur J4 iglidur A350 iglidur J3
®
®
®
®
● Cost-effective due to injection moulding method
● Eight dimensions for housing numbers range includes
UC203 to UC210
● Durable dk d1
● Low moisture absorption

Imperial dimensions available u Page 1163
B
Dimensions [mm]
Part No. Housing No. d1 dk B Max. static compressive force
E10 radial axial
Short-term Long-term Short-term Long-term
[N] [N] [N] [N]
made of iglidur J, low coefficient of friction (material information u From page 163)
®
JEM-17-12-SP New P203 17 40 12 – – – –
JEM-17-17-SP UC203 17 47 17 7,500 3,750 4,000 2,000
JEM-20-14-SP P204 20 47 14 8,000 4,000 4,000 2,000
JEM-20-17-SP UC204 20 47 17 8,000 4,000 4,000 2,000
JEM-25-15-SP P205 25 52 15 9,000 4,500 4,000 2,000
JEM-25-17-SP UC205 25 52 17 9,000 4,500 3,500 1,750
JEM-30-16-SP P206 30 62 16 13,500 6,750 5,000 2,500 ®
JEM-30-19-SP UC206 30 62 19 13,500 6,750 5,000 2,500 igubal accessories
JEM-30-21-80-SP New UC208 30 80 21 16,500 8,250 6,000 3,000
JEM-35-17-SP New P207 35 72 17 14,500 7,250 6,500 3,250
JEM-35-20-SP UC207 35 72 20 14,500 7,250 6,500 3,250 Ball studs made of plastic, galvanised steel
JEM-35-21-80 New UC208 35 80 21 – – – –
JEM-35-21-80-SP New UC208 35 80 21 18,000 9,000 6,000 3,000 and stainless steel
JEM-40-18-SP New P208 40 80 18 17,000 8,500 6,000 3,000
JEM-40-21-SP UC208 40 80 21 21,000 10,500 6,000 3,000 Adapter screw made from plastic
JEM-45-22-SP UC209 45 85 22 23,000 11,500 5,500 2,750
JEM-50-24-SP UC210 50 90 24 25,000 12,500 5,500 2,750 Fixing collars for spherical insert bearings
made of iglidur J4, low-cost material (material information u From page 1186)
®
J4EM-17-12-SP New P203 17 40 12 – – – –
J4EM-20-14-SP P204 20 47 14 8,000 4,000 4,000 2,000
J4EM-25-15-SP P205 25 52 15 9,000 4,500 4,000 2,000
J4EM-30-16-SP P206 30 62 16 13,500 6,750 5,000 2,500
made of iglidur A350, for high temperatures and chemicals (material information u From page 409)
®
A350EM-20-17-SP UC204 20 47 17 9,000 4,500 4,500 2,250
made of iglidur J3, for longer service life (material information u From page 187)
®
J3EM-30-21-80-SP New UC208 30 80 21 16,500 8,750 6,000 3,000
J3EM-40-21-SP New UC208 40 80 21 21,000 10,500 6,000 3,000 ASEAN 09/2023 ASEAN 09/2023

1010 Online tools and more information u www.igus-asean.com/spherical-balls
