igubal igubal
®
®
®
®
spherical igubal spherical balls | Product range igubal spherical balls | Product range New spherical
balls balls

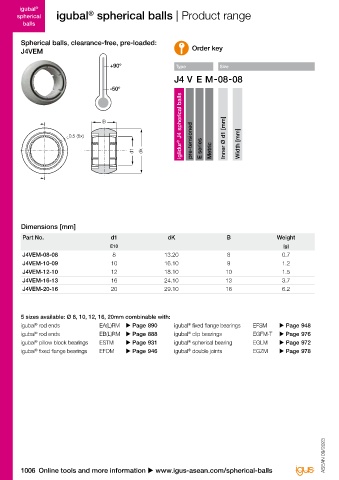

Spherical balls, clearance-free, pre-loaded: Spherical balls, for contact with food:
J4VEM Order key A181KM and A181EM Order key

B
+90º Type Size Type Size Options

-50º dk d1 30° Dimensional series
iglidur ® J4 spherical balls B
K : Dimensional K series

B B E : Dimensional E series

0.5 (6x) pre-tensioned Inner Ø d1 [mm] +90º Spherical ball made of Dimensional series Inner Ø d1 [mm]
0.5 (6x)
d1 dk d1 dk E series Metric Width [mm] iglidur ® A181 Metric Width [mm]
d1
dk
30° -50º

Dimensions [mm] Dimensions [mm]
Part No. d1 dK B Weight Part No. d1 dK B Weight
E10 [g] E10 [g]
J4VEM-08-08 8 13.20 8 0.7 A181KM-05-08 New 5 11.3 8 0.75
J4VEM-10-09 10 16.10 9 1.2 A181KM-06-09 New 6 12.8 9 0.97
J4VEM-12-10 12 18.10 10 1.5 A181KM-12-16 New 12 22.1 16 4.45
J4VEM-16-13 16 24.10 13 3.7
J4VEM-20-16 20 29.10 16 6.2
Dimensions [mm]
Part No. d1 dK B Weight
5 sizes available: Ø 8, 10, 12, 16, 20mm combinable with: E10 [g]
igubal rod ends EA(L)RM u Page 890 igubal fixed flange bearings EFSM u Page 948 A181EM-04-05 New 4 8.3 5 0.21
®
®
igubal rod ends EB(L)RM u Page 888 igubal clip bearings EGFM-T u Page 976 A181EM-05-06 New 5 10.3 6 0.40
®
®
igubal pillow block bearings ESTM u Page 931 igubal spherical bearing EGLM u Page 972 A181EM-06-06 New 6 10.3 6 0.35
®
®
igubal fixed flange bearings EFOM u Page 946 igubal double joints EGZM u Page 978 A181EM-08-08 New 8 13.3 8 0.76
®
®
A181EM-10-09 New 10 16.1 9 1.28
A181EM-12-10 New 12 18.1 10 1.16
A181EM-20-16 New 20 29.1 16 6.05

ASEAN 09/2023 ASEAN 09/2023

1006 Online tools and more information u www.igus-asean.com/spherical-balls 3D CAD files, prices and delivery time online u www.igus-asean.com/spherical-balls 1007
