igubal igubal
®
®
®
®

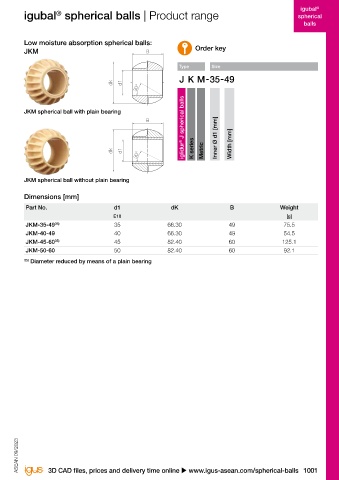

spherical igubal spherical balls | Product range igubal spherical balls | Product range spherical
balls balls
Low moisture absorption spherical balls: Low moisture absorption spherical balls:
JKM and JEM Order key JKM B Order key
B
Type Size Options Type Size

dk d1
dk d1 Dimensional series 30°
30° K : Dimensional K series
iglidur ® J spherical balls iglidur ® J spherical balls

JKM E : Dimensional E series JKM spherical ball with plain bearing
B B

+90º Dimensional series Inner Ø d1 [mm] Width [mm] Inner Ø d1 [mm] Width [mm]

dk d1 -50º Metric dk d1 30° K series Metric
30°

Imperial dimensions available
JEM
u Page 1163 JKM spherical ball without plain bearing

Dimensions [mm] Dimensions [mm]

Part No. d1 dK B Weight Part No. d1 dK B Weight
E10 [g] E10 [g]
JKM-03-06 3 8.10 6 0.3 JKM-35-49 35) 35 66.30 49 75.5
JKM-05-08 5 11.30 8 0.7 JKM-40-49 40 66.30 49 54.5
JKM-06-09 6 12.80 9 1.0 JKM-45-60 35) 45 82.40 60 125.1
JKM-08-12 8 15.90 12 1.9 JKM-50-60 50 82.40 60 92.1
JKM-10-14 10 19.00 14 3.1 35) Diameter reduced by means of a plain bearing
JKM-12-16 12 22.10 16 4.7
JKM-16-21 16 28.40 21 9.4
JKM-18-23 18 31.50 23 13.2
JKM-20-25 20 35.10 25 17.6
JKM-25-31 25 42.80 31 31.6
JKM-30-37 30 51.20 37 53.0

Dimensions [mm]

Part No. d1 dK B Weight
E10 [g]
JEM-04-05 4 8.30 5 0.3
JEM-05-06 5 10.20 6 0.4
JEM-06-06 6 10.20 6 0.4
JEM-08-08 8 13.30 8 0.8
JEM-10-09 10 16.10 9 1.3
JEM-12-10 12 18.10 10 1.7
JEM-15-12 15 22.00 12 2.9
JEM-16-13 16 24.10 13 3.9
JEM-17-14 17 25.20 14 4.1
JEM-20-16 20 29.10 16 6.4
JEM-25-20 25 35.60 20 11.5
JEM-30-22 30 40.90 22 14.5
JEM-40-28 40 53.00 28 31.0 ASEAN 09/2023 ASEAN 09/2023

1000 Online tools and more information u www.igus-asean.com/spherical-balls 3D CAD files, prices and delivery time online u www.igus-asean.com/spherical-balls 1001
