igubal igubal
®
®
®
®
spherical igubal spherical balls | Product range igubal spherical balls | Product range spherical
balls balls

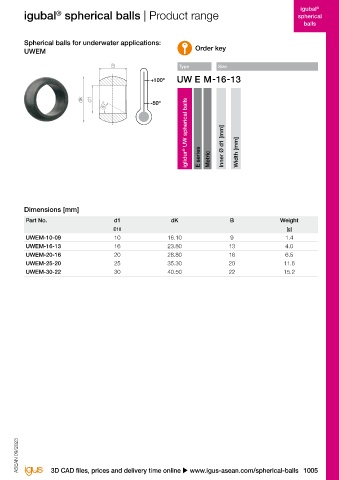

Spherical balls, stainless steel: EK Spherical balls for underwater applications:
Order key UWEM Order key
B
Type Size Version Options B Type Size

+100º
dk d1 Dimensional series
30° K : Dimensional K series dk d1 30° -50º
Spherical ball made of stainless steel Inner Ø d1 [mm] iglidur ® UW spherical balls
E : Dimensional E series

B

dk d1 K series E series Inner Ø d1 [mm] Width [mm]
30° Metric

Dimensions [mm] Dimensions [mm] Dimensions [mm]

Part No. d1 dK B Weight Part No. d1 dK B Weight Part No. d1 dK B Weight
E10 [g] E10 [g] E10 [g]
EK-03-K 3 8.10 6 1.7 EK-04 4 8.30 5 1.4 UWEM-10-09 10 16.10 9 1.4
EK-05-K 5 11.30 8 4.0 EK-05 5 10.30 6 2.5 UWEM-16-13 16 23.80 13 4.0
EK-06-K 6 12.80 9 5.5 EK-06 6 10.30 6 2.1 UWEM-20-16 20 28.80 16 6.5
EK-08-K 8 16.00 12 10.4 EK-08 8 13.30 8 4.4 UWEM-25-20 25 35.30 20 11.6
EK-10-K 10 19.00 14 16.8 EK-10 10 16.10 9 7.4 UWEM-30-22 30 40.50 22 15.2
EK-12-K 12 22.10 16 25.7 EK-12 12 18.10 10 9.3
EK-16-K 16 28.40 21 52.3 EK-15 15 22.00 12 15.7
EK-20-K 20 35.00 25 95.7 EK-16 16 24.10 13 21.2
EK-25-K 25 42.90 31 171.1 EK-20 20 29.10 16 34.6
EK-30-K 30 51.20 37 286.6 EK-25 25 35.46 20 61.6
EK-30 30 40.70 22 80.7

ASEAN 09/2023 ASEAN 09/2023

1004 Online tools and more information u www.igus-asean.com/spherical-balls 3D CAD files, prices and delivery time online u www.igus-asean.com/spherical-balls 1005
