spherical igubal spherical balls | Product range New igubal spherical insert bearings | Product range spherical
balls balls

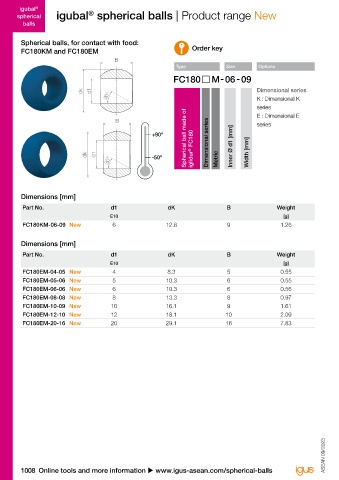

Spherical balls, for contact with food: Slim spherical insert bearings made of iglidur materials for various metallic bearing housings
®
FC180KM and FC180EM Order key
B
Type Size Options

dk d1 Dimensional series
30° K : Dimensional K iglidur J iglidur A180 iglidur A350 iglidur J3

series
®
®
®
®
Spherical ball made of Dimensional series ● Eight dimensions for housing numbers range includes
B E : Dimensional E ● 4 different spherical ball materials available: iglidur J, B
series
®
+90º A180, A350 and J3
dk d1 -50º iglidur ® FC180 Inner Ø d1 [mm] Width [mm] UC203 to UC210 dk d1
30° Metric ● Maintenance-free, dry operation
Durable
●
● Corrosion-resistant
● Resistant to dirt
Dimensions [mm] Dimensions [mm]

Part No. d1 dK B Weight Part No. Housing No. d1 dk B Max. static compressive force
E10 [g] E10 radial [N] axial [N]
FC180KM-06-09 New 6 12.8 9 1.26 made of iglidur J, low coefficient of friction (material information u From page 163)
®
JEM-17-17 UC203 17 47 17 10,000 7,500
Dimensions [mm] JEM-20-17 UC204 20 47 17 11,500 7,500
JEM-25-17 UC205 25 52 17 14,500 7,500
Part No. d1 dK B Weight
JEM-30-19 UC206 30 62 19 19,500 9,500
E10 [g]
FC180EM-04-05 New 4 8.3 5 0.55 JEM-35-20 UC207 35 72 20 24,000 10,500
FC180EM-05-06 New 5 10.3 6 0.55 JEM-40-21 UC208 40 80 21 29,000 12,000
FC180EM-06-06 New 6 10.3 6 0.56 JEM-45-22 UC209 45 85 22 34,000 13,000
FC180EM-08-08 New 8 13.3 8 0.97 JEM-50-24 ® UC210 50 90 24 41,500 15,500
FC180EM-10-09 New 10 16.1 9 1.61 made of iglidur A180, FDA-compliant all-rounder (material information u From page 425)
FC180EM-12-10 New 12 18.1 10 2.09 A180EM-17-17 UC203 17 47 17 7,500 6,000
FC180EM-20-16 New 20 29.1 16 7.83 A180EM-20-17 UC204 20 47 17 9,000 6,000
A180EM-25-17 UC205 25 52 17 11,500 6,000
A180EM-30-19 UC206 30 62 19 15,500 7,500
A180EM-35-20 UC207 35 72 20 19,000 8,500
A180EM-40-21 UC208 40 80 21 23,000 9,000
A180EM-45-22 UC209 45 85 22 27,000 10,000
A180EM-50-24 UC210 50 90 24 33,000 12,000
made of iglidur A350, for high temperatures and chemicals (material information u From page 409)
®
A350EM-17-17 UC203 17 47 17 17,000 13,000
A350EM-20-17 UC204 20 47 17 20,000 13,000
A350EM-25-17 UC205 25 52 17 25,000 13,000
A350EM-30-19 UC206 30 62 19 34,000 17,000
A350EM-35-20 UC207 35 72 20 41,500 18,500
A350EM-40-21 ® UC208 40 80 21 50,000 20,000
made of iglidur J3, for longer service life (material information u From page 187)
ASEAN 09/2023 ASEAN 09/2023 J3EM-30-21-80 New UC208 30 80 21 26,500 12,000

New
21
12,000
29,000
UC208
40
80
J3EM-40-21
